Adjusting Bale Full-Size (Electronic Bale Shape Indicators)

Maximum bale full-size

To obtain maximum bale full-size, proceed as follows:

1. Unscrew wing nut (A) and put ramp (C) into the rearmost slot (B).

2. Tighten wing nut (A).

Intermediate bale full-size

To get smaller bale full-size, proceed as follows:

1. Unscrew wing nut (A) to readjust ramp (C) position by using one of the other slots (B), changing switch actuation accordingly.

NOTE: MultiCrop ™ baler has only two slots (B).

2. Tighten wing nut (A).

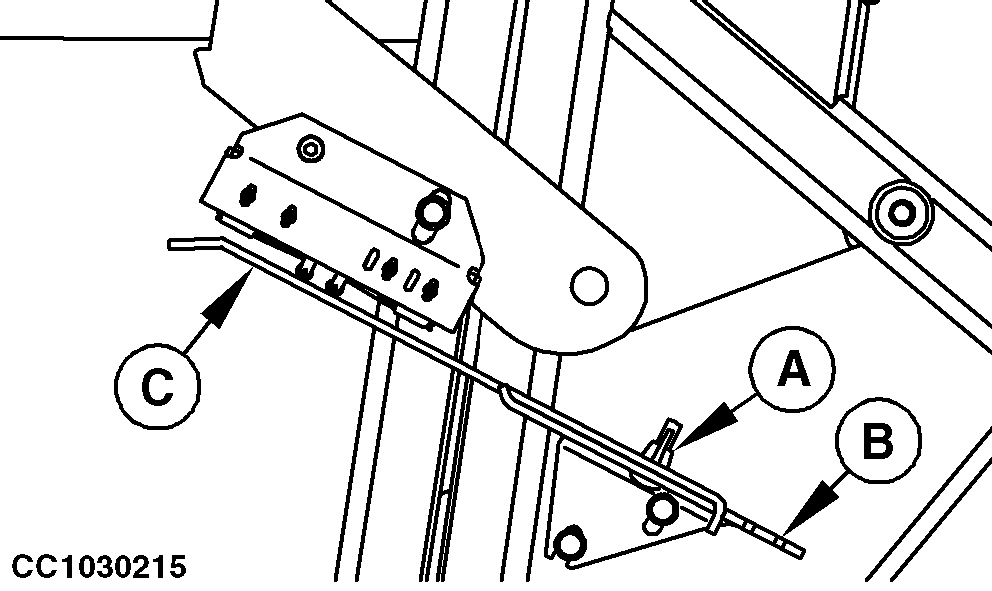

CC1030215


A-Wing nut
B-Slot
C-Ramp
