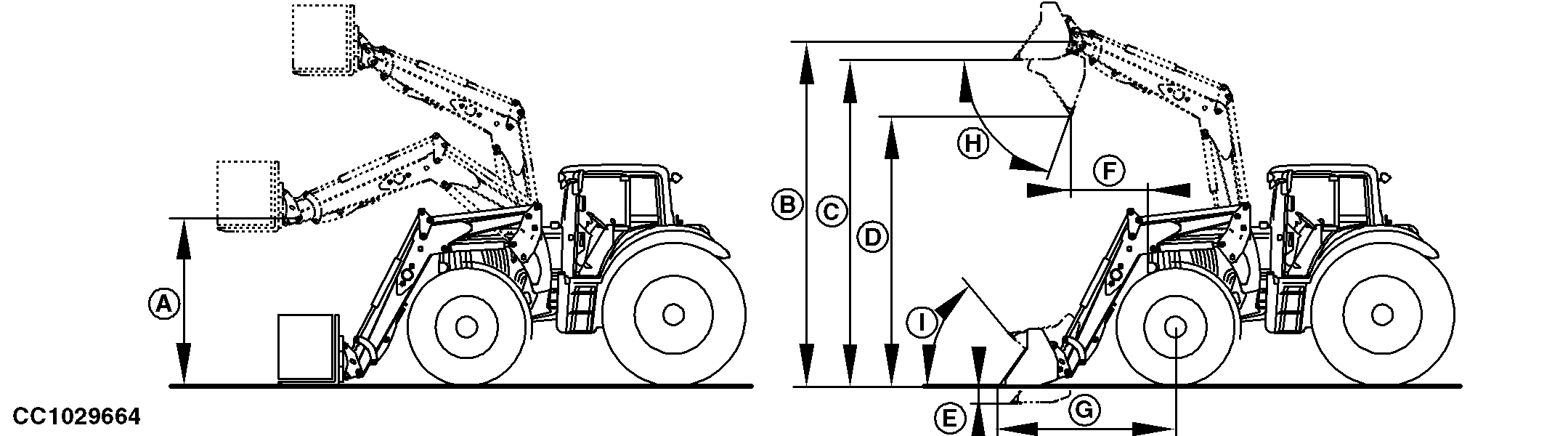

Non Self-Levelling Loader Specifications1
|
| Loader model number | 533 | 583 | 633 | 653 | 683 |
|---|---|---|---|---|---|
| Rated Operating Load at pallet bottom midpoint: | |||||
| at ground level | 1195 kg (2634 lb) |
1447 kg (3190 lb) |
2255 kg (4971 lb) |
2117 kg (4667 lb) |
1833 kg (4041 lb) |
| at height A = 2 m (6 ft 6 in.) | 1109 kg (2445 lb) |
1415 kg (3120 lb) |
1775 kg (3913 lb) |
1710 kg (3770 lb) |
1615 kg (3560 lb) |
| at full height | 924 kg (2037 lb) |
1237 kg (2727 lb) |
1337 kg (2948 lb) |
1303 kg (2873 lb) |
1264 kg (2787 lb) |
| Brake out capacity at front of bucket | 11500 N | 14600 N | 21900 N | 20000 N | 16479 N |
| (B) Maximum lift height at pivot point | 3.33 m (11 ft 1 in.) |
3.64 m (11 ft 11 in.) |
3.86 m (12 ft 8 in.) |
4.01 m (13 ft 2 in.) |
4.40 m (14 ft 5 in.) |
| Clearance: | |||||
| (C) with bucket levelled | 3.16 m (10 ft 4 in.) |
3.42 m (11 ft 2 in.) |
3.64 m (11 ft 11 in.) |
3.80 m (12 ft 6 in.) |
4.19 m (13 ft 9 in.) |
| (D) with bucket dumped | 2.45 m (8 ft) |
2.67 m (8 ft 8 in.) |
2.89 m (9 ft 5 in.) |
3.05 m (10 ft) |
3.61 m (11 ft 10 in.) |
| (E) Digging depth | 59 mm (2.3 in.) |
32 mm (1.3 in.) |
124 mm (4.9 in.) |
205 mm (8.1 in.) |
56 mm (2.2 in.) |
| Reach: | |||||
| (F) at full height, dumped bucket | 193 mm (7.6 in.) |
198 mm (7.8 in.) |
266 mm (10.5 in.) |
377 mm (1 ft 3 in.) |
368 mm (1 ft 2 in.) |
| (G) at ground level, levelled bucket | 2.08 m (6 ft 10 in.) |
2.12 m (7 ft) |
2.32 m (7 ft 7 in.) |
2.57 m (8 ft 5 in.) |
2.73 m (8 ft 11 in.) |
| (H) Maximum dump angle at full height | 60° | 71° | 69° | 70° | 43° |
| (I) Maximum roll back angle at ground | 40° | 38° | 28° | 43° | 38° |
| Weight of loader (without implement) | 393 kg (866 lb) |
442 kg (974 lb) |
524 kg (1155 lb) |
591 kg (1303 lb) |
625 kg (1378 lb) |
|
The above mentioned vary depending on tractor configuration. |
Maximum hydraulic operating pressure: 20000 kPa (200 bar; 2900 psi). |
