OMCC58808: 533, 583, 633, 653, 663, 683, 753 Loaders and 746 Loader (005000- ), Block File: OUCC006_000105F_19

The shut-off valve is on the right side of the loader near the hydraulic coupler.

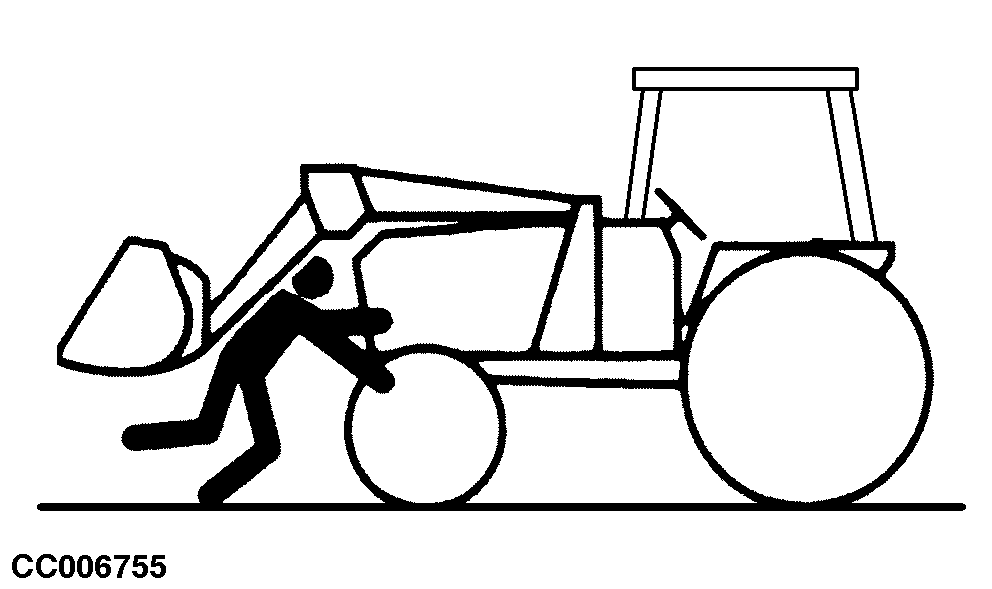

causym CAUTION: The shut-off valve must not be used for servicing hydraulic components.

1. Raise loader to required height.

2. Place transmission in PARK, apply handbrake, shut off engine and remove key.

3. Turn shut-off valve (A) clockwise to lock the position of the loader.

Turn shut-off valve (A) counter-clockwise to unlock the position of the loader.

A-Shut-off valve

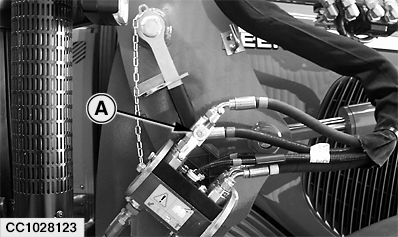

Unlock position

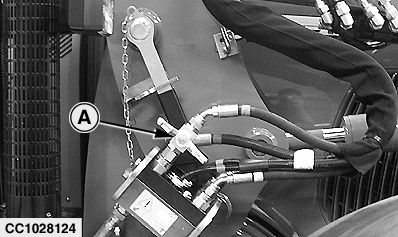

CC1028124

Lock position

OUCC006,000105F -19-17MAY06-1/1
