Operating the Loader with Multi-Function Lever

Operate loader from operator's seat only. Remain at controls until operating cycle is completed.

Lever returns to NEUTRAL by itself from all positions except FLOAT. Pull lever back to release from FLOAT.

Perform loader functions as follows:

Lever Position Loader Operation
1 Rearward... RAISE
2 Forward... LOWER
3 Full Forward... FLOAT
4 Left-hand side... ROLL BACK
5 Right-hand side... DUMP



If loader does not respond as expected to control lever movement:

  • Check for correct hose connections. See "Identifying Hose Connections" in "Service" Section.
  • Check tractor hydraulic oil level. See your tractor operator's manual.

NOTE: Loader with load holding valve does not allow the floating.

Oil flow limitations may not allow you to do two loader operations at one time such as RAISE and ROLL BACK. The operation that requires the least hydraulic force will move first.

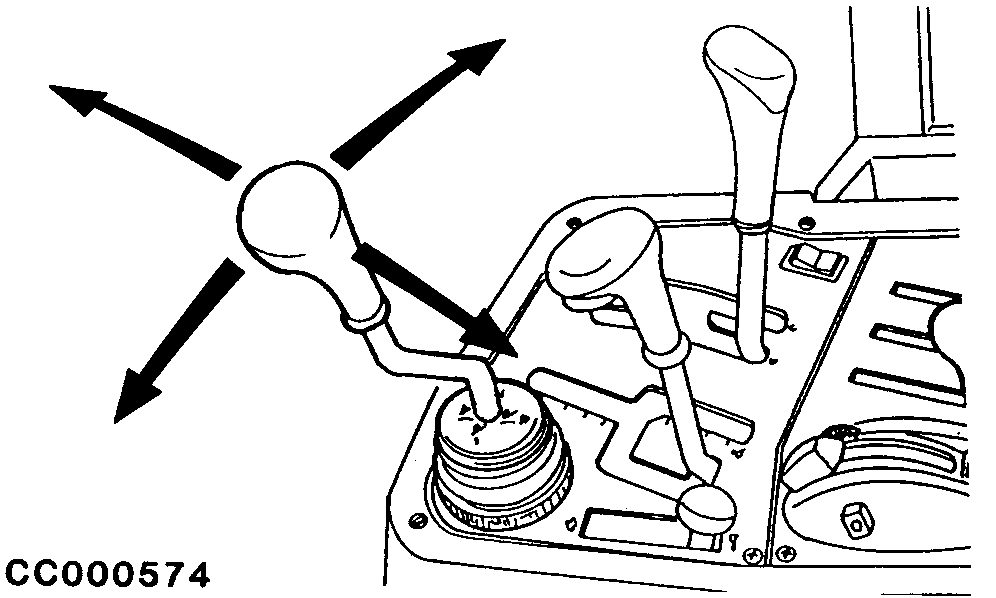

CC000574

Console Integrated Multi-Function Lever

CC1018020

Standard Multi-Function Lever

OUCC006,0001092 -19-18APR06-1/1
