Adjusting Implement Level Indicator

This indicator allows you to easily check the level of the implements.

To adjust implement level indicator proceed as follow:

NOTE: Indicator position for a bucket will not be the same for another implement.

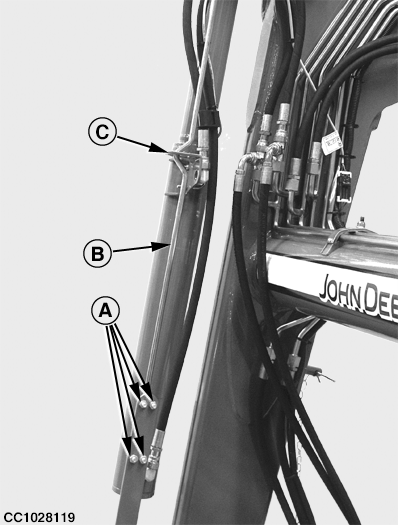

2. Loosen nuts (A).

3. Position rod (B) to align it to the bracket (C) as shown.

4. Tighten nuts (A).

A-Nuts
B-Rod
C-Bracket

OUCC006,0001095 -19-02JUN06-1/1
