Operating MEMOSYSTEM™ (if equipped)

The MEMOSYSTEM allows an automatic return to levelled position of the implement.

NOTE: Before operating MEMOSYSTEM it is necessary to check:

• Level indicator position. See "Adjusting Implement Level Indicator" in this Section.

• MEMOSYSTEM sensor. See "Adjusting MEMOSYSTEM sensor" in "Service" Section.

To operate MEMOSYSTEM proceed as follows:

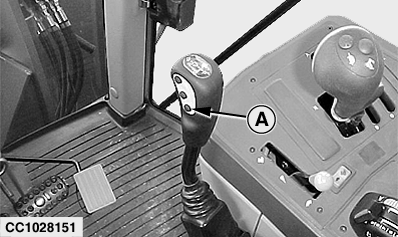

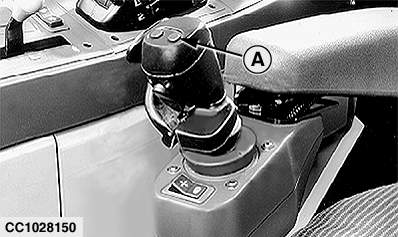

Continuously press MEMOSYSTEM switch (A) and push multi-function lever in forward position.

A-MEMOSYSTEM switch

MEMOSYSTEM is a trademark of Deere & Company

OUCC006,0001096 -19-02JUN06-1/1
