Identifying Connections on Multi-Coupler
CAUTION:
Help prevent personal injury caused by unexpected loader movement. Anticipated loader movement responds to control lever only if hoses are connected to tractor as shown.
Hose connections are identified by color coded dust covers. Colored plugs are installed on the mid-mounting individual-couplers at loader predelivery. Corresponding colored caps are installed on loader hose ends.
Use following chart to identify hoses and replace missing colored dust covers:
| Function |
Color |
| A- |
Rod-end lift cylinders... |
Red |
| B- |
4th and MEMOSYSTEM functions... |
Blue Wire |
| C- |
Rod-end implement cylinders... |
Green |
| D- |
Rod-end bucket cylinders... |
Black |
| E- |
Head-end bucket cylinders... |
Yellow |
| F- |
3rd function diverter valve and MEMOSYSTEM sensor... |
Red Wire |
| G- |
Head-end implement cylinders... |
Orange |
| H- |
Head-end lift cylinders... |
Blue |
| I- |
MEMOSYSTEM sensor... |
Red Wire |
|

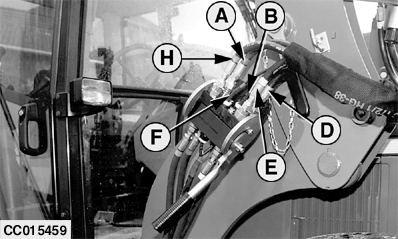

A-Red
B-Blue Wire
C-Green
D-Black
E-Yellow
F-Red Wire
G-Orange
H-Blue
I-Red Wire
|
