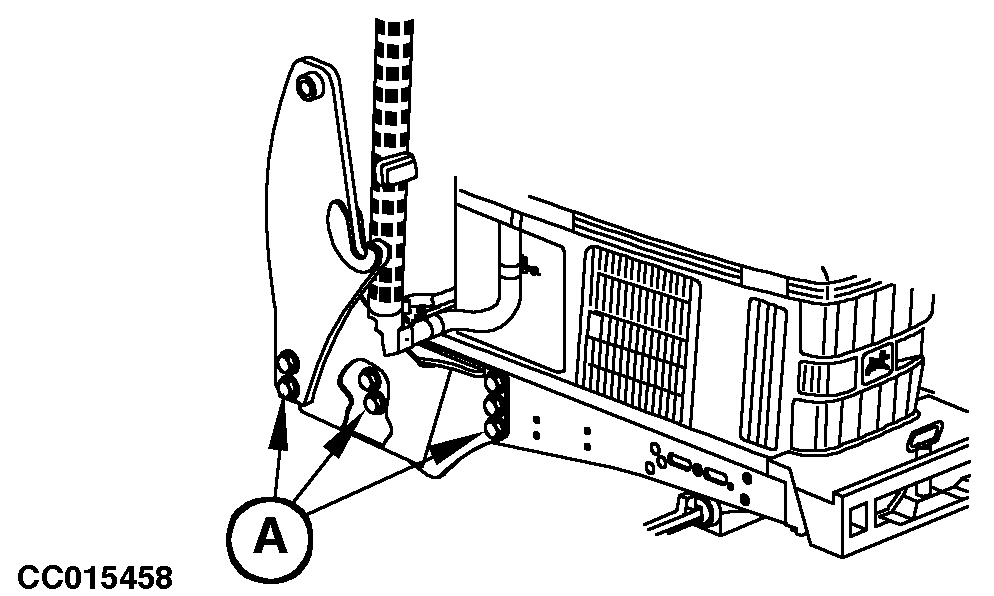

Every 50 Hours - Check Mounting Frame Hardware (6000, 6010, 6020 and 6030 Series Tractor)IMPORTANT: Help prevent damage to the tractor or loader caused by operating with loose mounting hardware. Tighten loader mounting frame hardware every 50 hours. On 4-cylinder tractors Tighten all M20 screws (A) on each frame to 540 N·m (400 lb-ft) torque. On 6-cylinder tractors Tighten all M20 screws (A) on each frame to 620 N·m (460 lb-ft) torque.
|
|
OUCC006,00010A0 -19-18MAY06-1/1 |
