Adjusting Front Tread (3000 and 3010 Series Tractors)

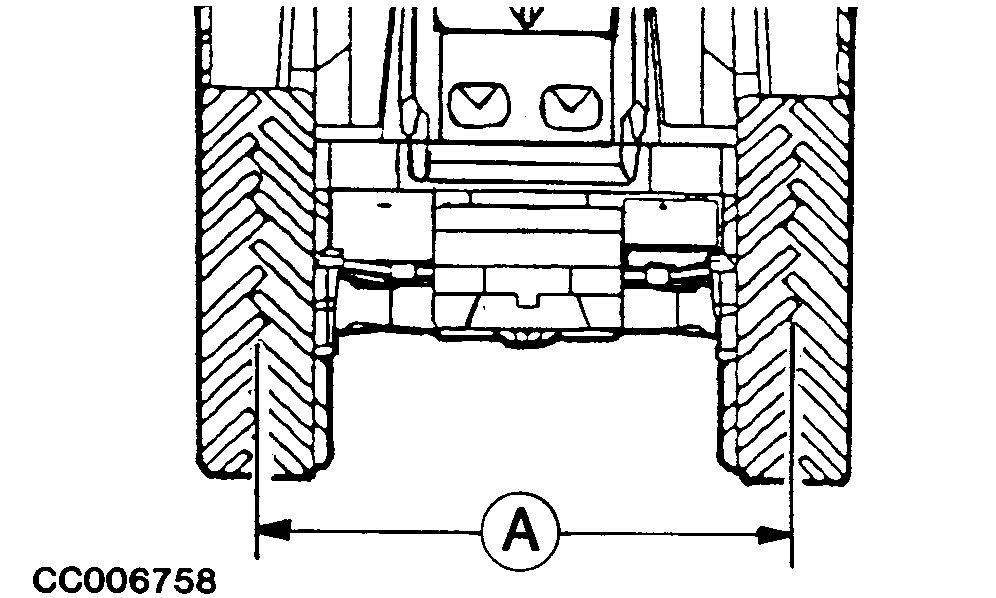

Adjust distance from tire center to tire center (A) between a minimum of 1500 mm (4 ft 11 in.) and a maximum of 2000 mm (6 ft 7 in.).

Adjust tractor steering stop and fender positions so that no interference occurs when the front axle oscillates.

See your tractor operator's manual to make adjustments.

A-Tractor front tread
