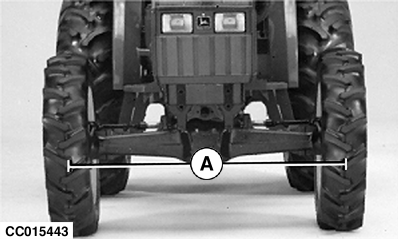

Adjusting Front Tread (5000, 5605, 5705, 5010 and 5015 Series Tractors)Adjust distance from tire center to tire center (A) between a minimum of 1600 mm (5 ft 3 in.) and a maximum of 1750 mm (5 ft 9 in.). Adjust tractor steering stop and fender positions so that no interference occurs when the front axle oscillates. See your tractor operator's manual to make adjustments.
|
|
OUCC006,0001200 -19-12DEC06-1/1 |
