Adjusting Front Tread (7030 Series Tractor)

Adjust distance from tire center to tire center (A) between a minimum of 1700 mm (5 ft 7 in.) and a maximum of 1800 mm (5 ft 11 in.).

Adjust tractor steering stop and fender positions so that no interference occurs when the front axle oscillates.

See your tractor operator's manual to make adjustments.

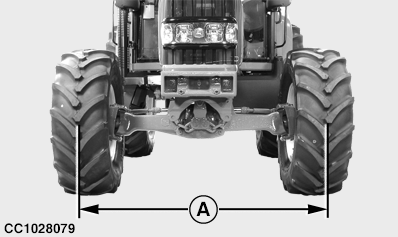

A-Tractor front tread
