OMCC58808: 533, 583, 633, 653, 663, 683, 753 Loaders and 746 Loader (005000- ), Block File: OUCC006_0001217_19

causym CAUTION: To prevent serious injury, implement must be attached and detached by the tractor driver himself.

1. Clean any debris off of auto-latch device, implement holder and implement attaching points.

2. Place auto-latch device in unlatched position.

a. Loaders without hydraulic implement unlatching:

Extend bucket cylinders to angle the implement holder forward.

Engage parking lock, apply handbrake, shut off engine, remove key.

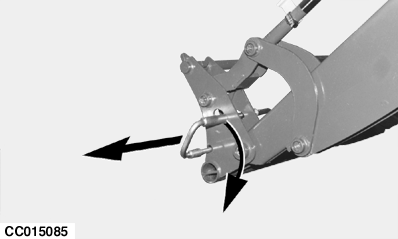

Pull handle of auto-latch device, then turn it clockwise to lock it in its extended position as shown.

OUCC006,0001217 -19-28NOV06-1/5

b. Loaders with hydraulic implement unlatching (533, 583, 633, 653, 663, 683 and 753)

Fully roll back the implement holder to fill accumulator of hydraulic implement unlatching.

Extend bucket cylinders to angle the implement holder forward.

Continuously press button (A) during 2,5 seconds. The auto-latch device has moved to unlatched position when the sound stops.

Release button (A).

NOTE: If button (A) is released before the end of the sound, the auto-latch device does not move to unlatched position.

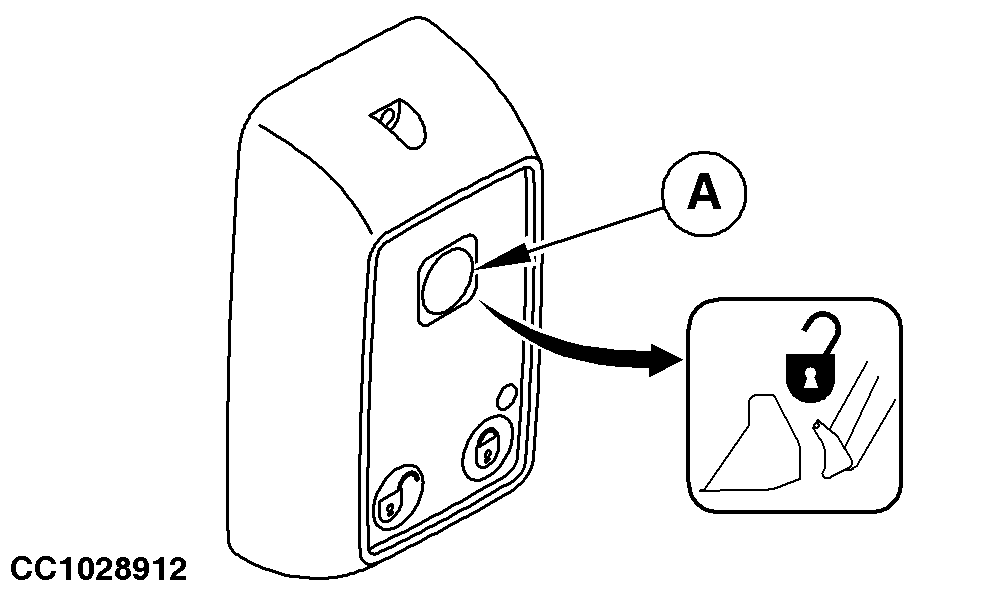

Control unit with safety device shown

A-Unlatching button

OUCC006,0001217 -19-28NOV06-2/5

3. Align top of implement holder with bucket hooks.

4. Raise loader until implement holder pins engage bucket hooks, then roll back bucket quickly to actuate the auto-latch device.

NOTE: Auto-latch device is optimized for operating with front of loader boom just off ground.

5. Engage parking lock, apply handbrake, shut off engine, remove key.

6. Visually confirm pins are fully inserted in implement attaching points.

causym CAUTION: Check that implement is properly locked before use.

Never leave loader with an implement partially attached.

OUCC006,0001217 -19-28NOV06-3/5

7. Connect hydraulics and electrics (implements with 3rd or 4th functions).

Level the implement and lower it to ground.

Engage parking lock, apply handbrake, shut off engine.

IMPORTANT: To avoid coupling under pressure, relieve pressure in loader hydraulic lines. See "Attaching/Detaching the Loader" Section.

Remove key.

a. Connecting to individual couplers:

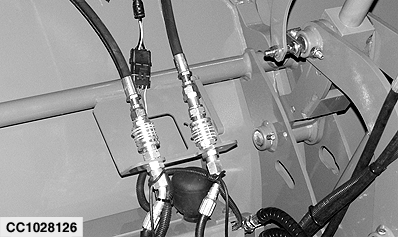

If implement is equipped, connect its hydraulic couplers and wiring harness.

Check that implement operates properly.

OUCC006,0001217 -19-28NOV06-4/5

b. Connecting multi-coupler:

Open cover (A).

Before each connection, carefully clean the mating surface of base and top case as well as guiding pins.

Push on lock button (D) and simultaneously pull up lock cam lever (B).

Engage top case (E) on base (C), then pull down lock cam lever (B) until lock button (D) engages, so that top case (E) is connected to base (C).

If implement is equipped, connect wiring harness.

A-Cover
B-Lock cam lever
C-Base
D-Lock button
E-Top case

OUCC006,0001217 -19-28NOV06-5/5
