Detach 533, 583, 633, 653, 663, 683 and 753 Loaders

causym CAUTION: DO NOT allow bystanders while detaching the loader.

To help prevent personal injury caused by a falling loader, always detach on a hard, level surface. Equip the loader with a bucket, manure fork or pallet fork for parking. Never use a round bale gripper or round bale elevator to park the loader.

W14000

OUCC006,000134A -19-24OCT07-1/8

1. Dump bucket 30° to 45°.

2. Lower bucket to ground and apply down pressure to raise front wheels just off ground.

3. Engage parking lock, apply handbrake, shut off engine, remove key and lock loader operating levers.

CC1030274

OUCC006,000134A -19-24OCT07-2/8

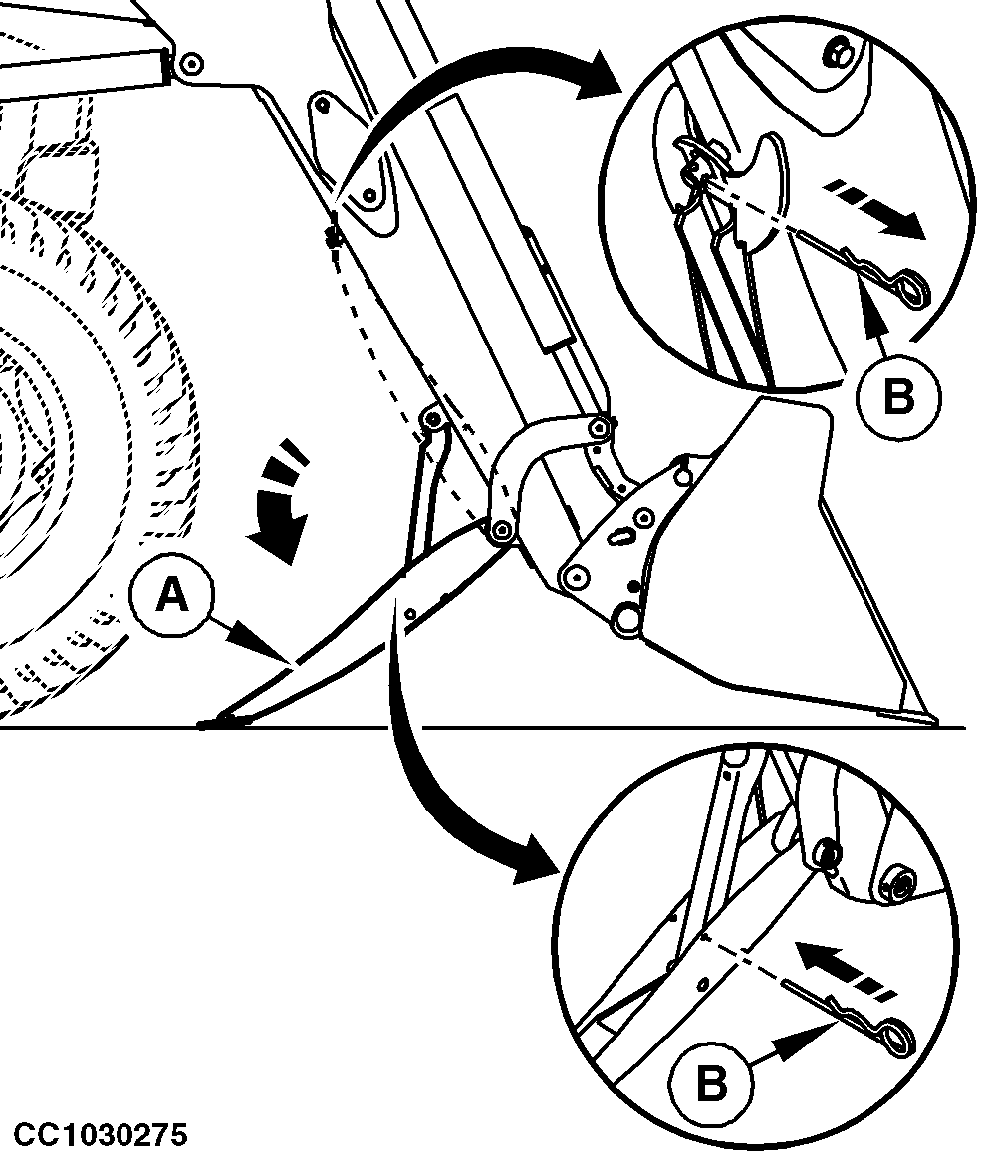

4. Lower parking stands on both sides:

causym CAUTION: To prevent personal injury, keep clear of area below parking stand.

a. Support parking stand (A) and remove spring pins (B).

b. Release parking stand (A).

NOTE: The parking stand (A) must fall down due to its own weight.

c. Secure parking stand in operating position with spring pins (B).

NOTE: To prevent loader from sinking in soft ground, place boards under parking stands.


A-Parking stand
B-Spring pins

CC1030275

OUCC006,000134A -19-24OCT07-3/8

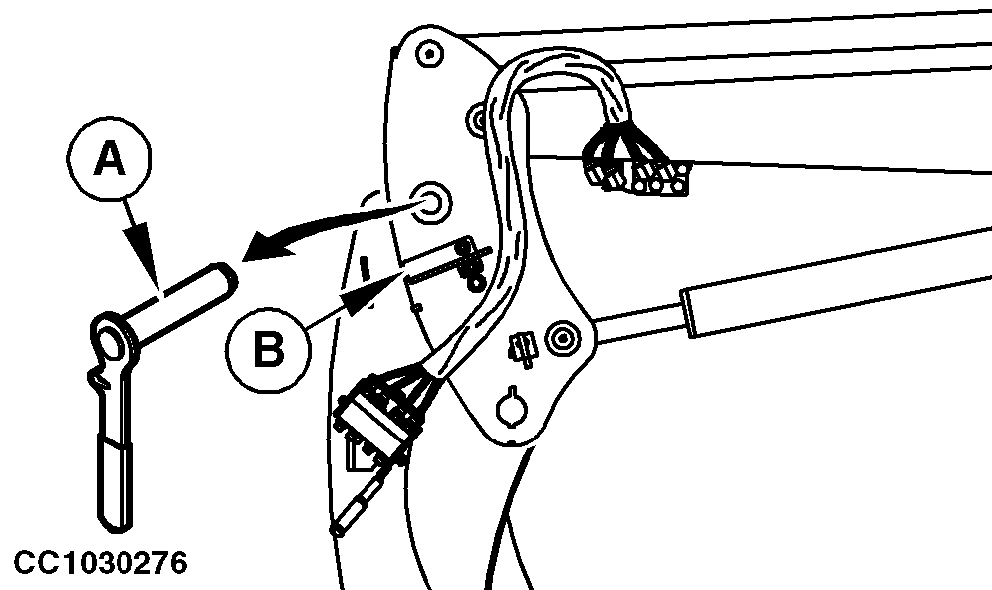

5. Remove mounting pin (A) on both sides:

a. Unlock mounting pin (A) and pull it out.

b. Store it in the provided support (B).


A-Mounting pin
B-Support

CC1030276

OUCC006,000134A -19-24OCT07-4/8

6. Start engine, place transmission in NEUTRAL, release handbrake.

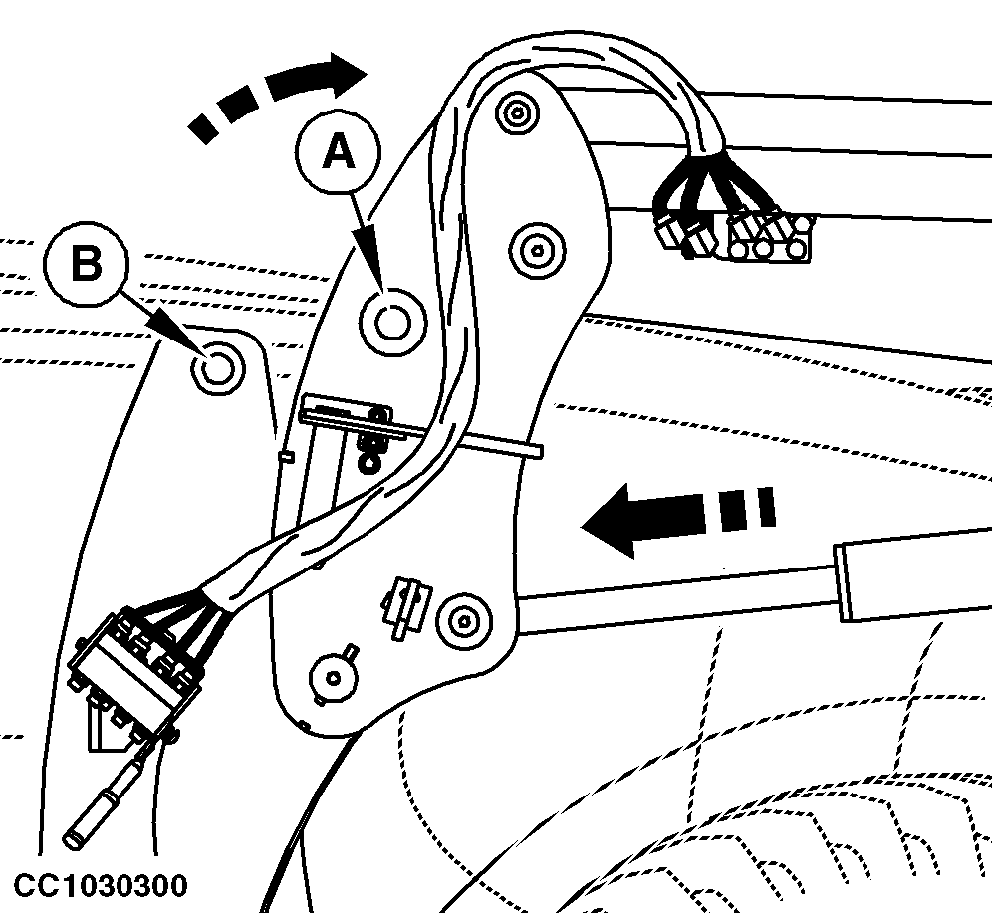

7. Extend lift cylinders until bushings (A) are ahead of bushings (B).

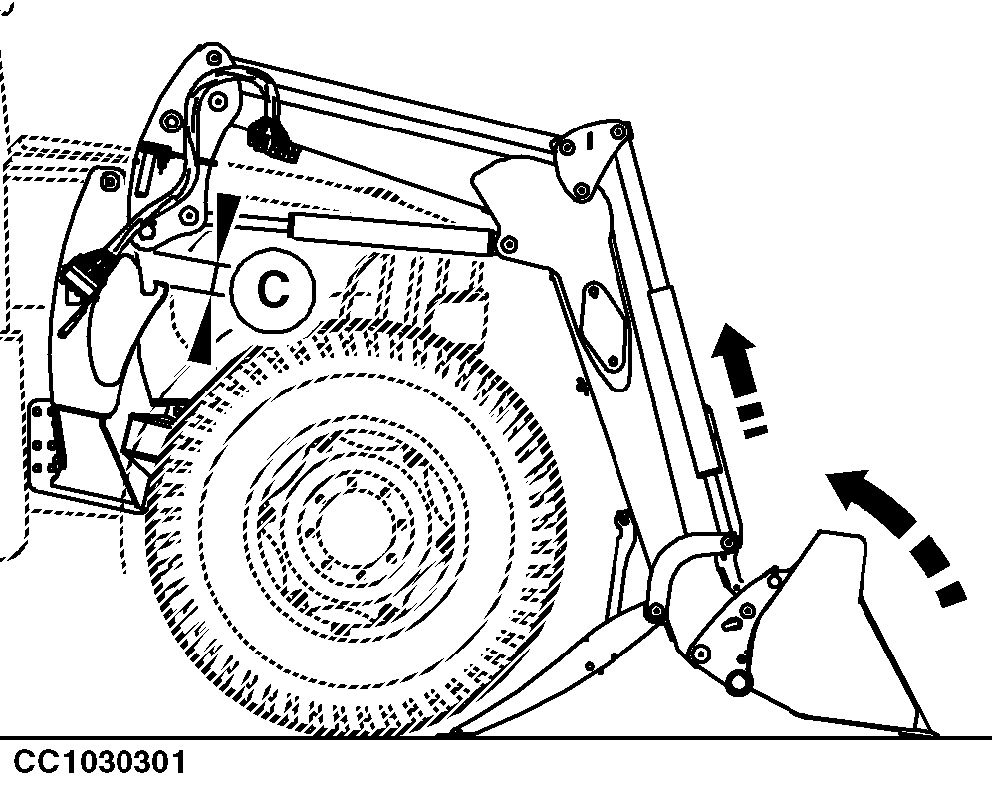

8. Slowly roll bucket back until loader is lifted (C) 100 mm (4 in.) out of mounting frame hooks.

NOTE: Move tractor as needed to keep hoses loose.

If the tractor is equipped with front fenders, sufficient clearance must be maintained between bottom of mast and top of fenders to clear tractor with the loader.

9. Engage parking lock, apply handbrake, shut off engine.


A-Loader mast bushing
B-Mounting frame bushing
C-100 mm (4 in.)

CC1030300
CC1030301

OUCC006,000134A -19-24OCT07-5/8

10. Move lever forward and back, side to side to relieve hydraulic pressure.

11. Remove key and lock out controls.

CC1018020

Standard Multi-Function Lever

OUCC006,000134A -19-24OCT07-6/8

12. Disconnect hydraulics and electrics.

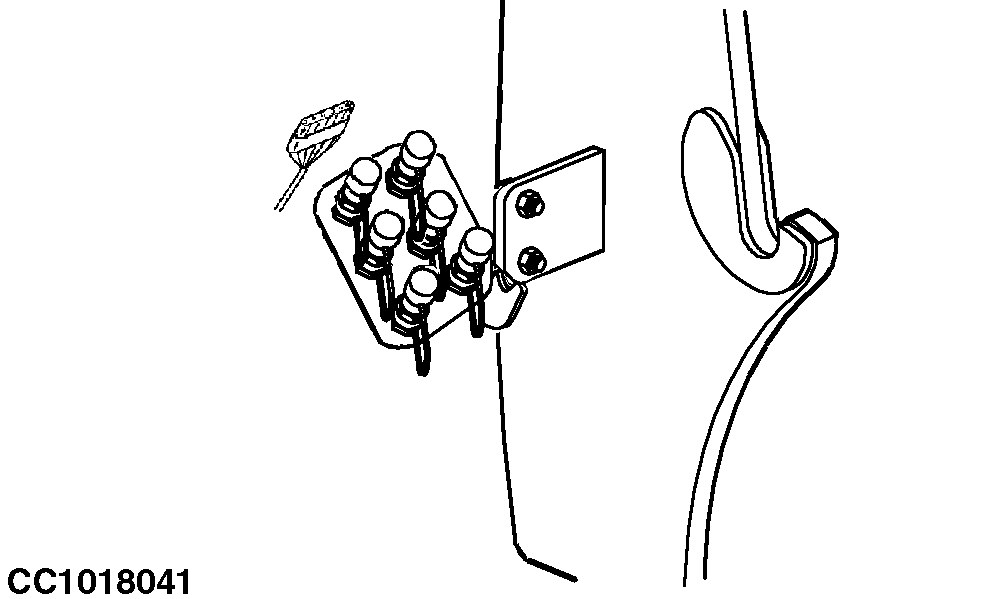

a. Loader with individual couplers:

Disconnect hydraulic couplers and electrical harness if equipped.

Place caps on hose ends and couplers, then store hoses on loader.

CC1018041

OUCC006,000134A -19-24OCT07-7/8

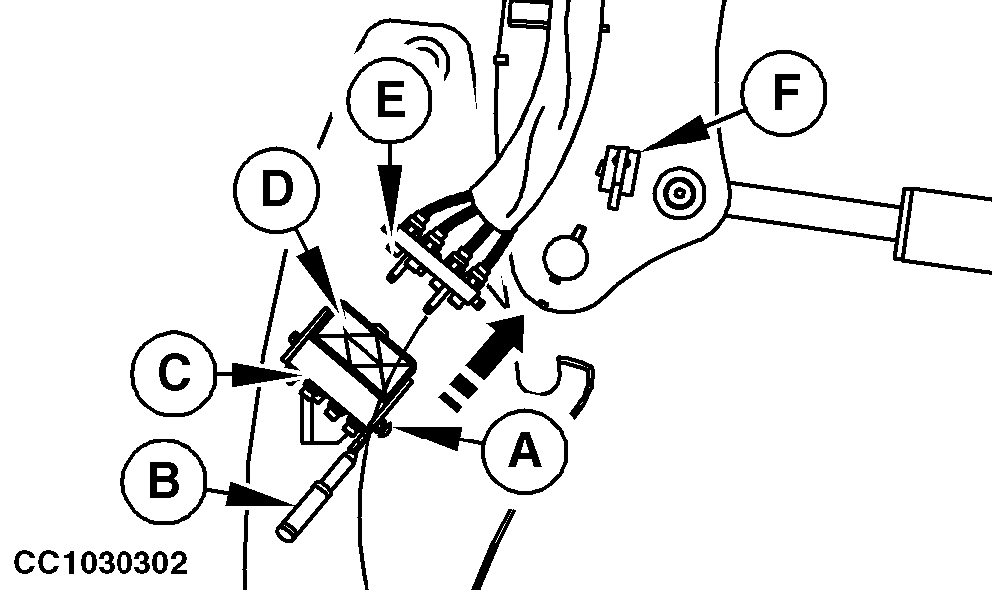

b. Loader with multi-coupler:

Push on button (A) and simultaneously pull up lock cam lever (B) so that top case (E) is disconnected from base (C).

Store hoses and top case (E) in provided support (F).

Close cover (D) to protect base (C).

c. Place transmission in reverse and move tractor slowly away from loader.


A-Lock button
B-Lock cam lever
C-Base
D-Cover
E-Top case
F-Support

CC1030302

OUCC006,000134A -19-24OCT07-8/8
