Hydraulic Self-Levelling Cylinder Positions (583, 633 and 653 HSL Loaders)

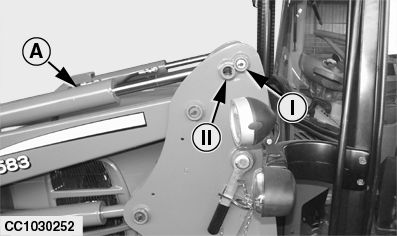

On Hydraulic Self-Levelling loaders, cylinder (A) has two different positions.

Position (I): optimum parallelism of the implement while raising or lowering the loader.

IMPORTANT: Always use this position when working with pallet fork.

Position (II): light roll back of the implement during the rise.

NOTE: To adjust Hydraulic Self-Levelling cylinder, see "Adjust Hydraulic Self-Levelling Cylinders" in "Service" section.

A-Hydraulic Self-Levelling cylinder
