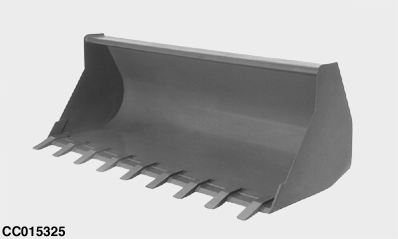

Earth BucketThe following earth buckets are available: The chart below gives the compatibility between buckets and loaders. Only the combinations marked OK are allowed. |
|
| Bucket Width | 1300 mm (4 ft 3 in.) |
1600 mm (5 ft 3 in.) |
1800 mm (5 ft 11 in.) |
2000 mm (6 ft 7 in.) |
2200 mm (7 ft 3 in.) |
|
|---|---|---|---|---|---|---|
| Struck Capacity | 0.45 m3 (16 cu ft) |
0.57 m3 (20 cu ft) |
0.67 m3 (24 cu ft) |
0.71 m3 (25 cu ft) |
0.79 m3 (28 cu ft) |
|
| Loader Model | Compatibility | |||||
| 533 | NSL | OK | ||||
| 533 | MSL | OK | OK | |||
| 583 | NSL | OK | OK | |||
| 583 | MSL | OK | OK | OK | ||
| 583 | HSL | OK | OK | OK | ||
| 633 | NSL | OK | OK | |||
| 633 | MSL | OK | OK | OK | OK | OK |
| 633 | HSL | OK | OK | OK | OK | OK |
| 653 | NSL | OK | OK | |||
| 653 | MSL | OK | OK | OK | OK | OK |
| 653 | HSL | OK | OK | OK | OK | OK |
| 663 | MSL | OK | OK | OK | OK | OK |
| 683 | NSL | OK | OK | |||
| 683 | MSL | OK | OK | OK | OK | OK |
| 683 | HSL | OK | OK | OK | OK | OK |
|
OK: Bucket allowed on this loader |
OUCC006,000134F -19-24OCT07-1/1 |
