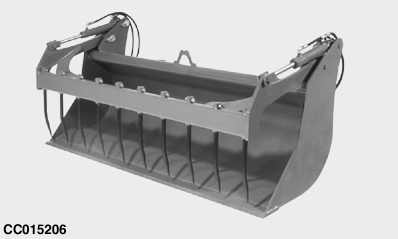

Standard Multi-Purpose BucketThe following standard multi-purpose buckets with grapple are available: The chart below gives the compatibility between buckets and loaders. Only the combinations marked OK are allowed. |
|
| Bucket Width | 1600 mm (5 ft 3 in.) |
2000 mm (6 ft 7 in.) |
2200 mm (7 ft 3 in.) |
|
|---|---|---|---|---|
| Struck Capacity | 0.48 m3 (17 cu ft) |
0.6 m3 (21 cu ft) |
0.66 m3 (23 cu ft) |
|
| Loader Model | Compatibility | |||
| 533 | MSL | OK | ||
| 583 | NSL | OK | ||
| 583 | MSL | OK | OK | |
| 583 | HSL | OK | OK | |
| 633 | NSL | OK | ||
| 633 | MSL | OK | OK | OK |
| 633 | HSL | OK | OK | OK |
| 653 | NSL | OK | ||
| 653 | MSL | OK | OK | OK |
| 653 | HSL | OK | OK | OK |
| 663 | MSL | OK | OK | OK |
| 683 | NSL | OK | ||
| 683 | MSL | OK | OK | OK |
| 683 | HSL | OK | OK | OK |
|
OK: Bucket allowed on this loader |
