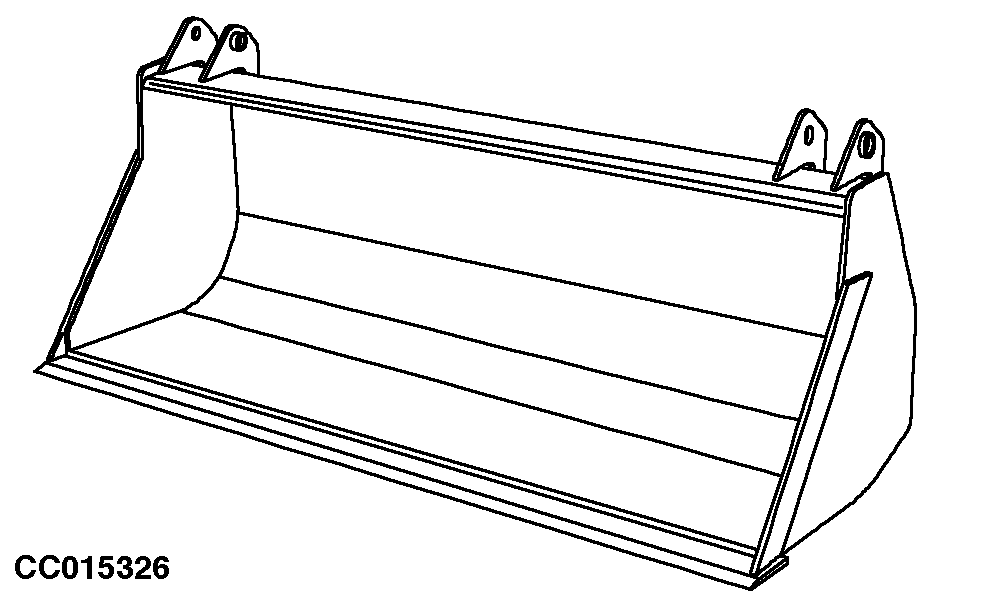

Heavy-Duty Multi-Purpose BucketThe following multi-purpose buckets are available: The chart below gives the compatibility between buckets and loaders. Only the combinations marked OK are allowed. |
|
| Bucket Width | 1600 mm (5 ft 3 in.) |
2000 mm (6 ft 7 in.) |
2400 mm (7 ft 10 in.) |
|
|---|---|---|---|---|
| Struck Capacity | 0.73 m3 (26 cu ft) |
0.9 m3 (32 cu ft) |
1.09 m3 (38 cu ft) |
|
| Loader Model | Compatibility | |||
| 583 | MSL | OK | ||
| 583 | HSL | OK | ||
| 633 | NSL | OK | ||
| 633 | MSL | OK | ||
| 633 | HSL | OK | ||
| 653 | NSL | OK | ||
| 653 | MSL | OK | ||
| 653 | HSL | OK | ||
| 663 | MSL | OK | OK | OK |
| 683 | NSL | OK | ||
| 683 | MSL | OK | OK | OK |
| 683 | HSL | OK | OK | OK |
| 753 | MSL | OK | OK | |
| 746 | MSL | OK | OK | |
|
OK: Bucket allowed on this loader |
OUCC006,0001354 -19-24OCT07-1/1 |
