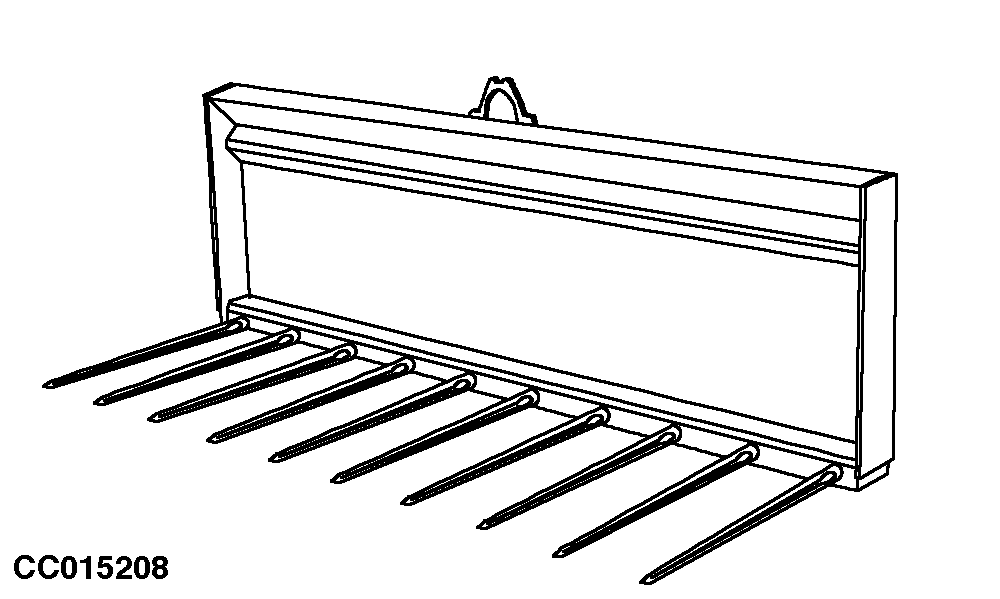

Standard Manure ForkStandard manure forks are available in the following widths: These forks are equipped with 810 mm (2 ft 8 in.) tines. The chart below gives the compatibility between forks and loaders. Only the combinations marked OK are allowed. |
|
| Fork Width | 1400 mm (4 ft 7 in.) |
1600 mm (5 ft 3 in.) |
2000 mm (6 ft 7 in.) |
2200 mm (7 ft 3 in.) |
|
|---|---|---|---|---|---|
| Loader Model | Compatibility | ||||
| 533 | NSL | OK | |||
| 533 | MSL | OK | OK | ||
| 583 | NSL | OK | OK | ||
| 583 | MSL | OK | OK | OK | OK |
| 583 | HSL | OK | OK | OK | OK |
| 633 | NSL | OK | OK | OK | |
| 633 | MSL | OK | OK | OK | OK |
| 633 | HSL | OK | OK | OK | OK |
| 653 | NSL | OK | OK | OK | |
| 653 | MSL | OK | OK | OK | OK |
| 653 | HSL | OK | OK | OK | OK |
| 663 | MSL | OK | OK | OK | OK |
| 683 | NSL | OK | OK | OK | |
| 683 | MSL | OK | OK | OK | OK |
| 683 | HSL | OK | OK | OK | OK |
|
OK: Fork allowed on this loader |
OUCC006,0001355 -19-24OCT07-1/1 |
