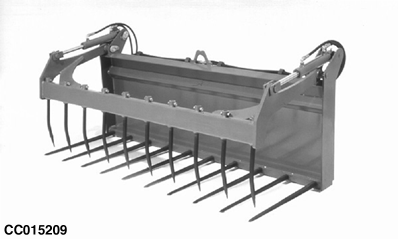

Standard Manure Fork with GrappleStandard manure forks with grapples are available in the following widths: The chart below gives the compatibility between forks and loaders. Only the combinations marked OK are allowed. |
|
| Fork Width | 1400 mm (4 ft 7 in.) |
1600 mm (5 ft 3 in.) |
2000 mm (6 ft 7 in.) |
|
|---|---|---|---|---|
| Loader Model | Compatibility | |||
| 533 | MSL | OK | OK | |
| 583 | NSL | OK | OK | |
| 583 | MSL | OK | OK | OK |
| 583 | HSL | OK | OK | OK |
| 633 | NSL | OK | OK | |
| 633 | MSL | OK | OK | OK |
| 633 | HSL | OK | OK | OK |
| 653 | NSL | OK | OK | |
| 653 | MSL | OK | OK | OK |
| 653 | HSL | OK | OK | OK |
| 663 | MSL | OK | OK | OK |
| 683 | NSL | OK | OK | |
| 683 | MSL | OK | OK | OK |
| 683 | HSL | OK | OK | OK |
|
OK: Fork allowed on this loader NOTE: This implement requires the loader to be equipped with a third hydraulic function. |
OUCC006,0001356 -19-24OCT07-1/1 |
