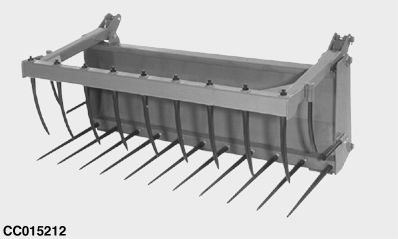

Heavy-Duty Manure Fork with Grapple

Grapples are available to fit heavy-duty manure forks.

Grapples on heavy-duty manure/silage forks improve silage handling.

The chart below gives the compatibility between heavy-duty manure fork with grapple and loaders.

Only the combinations marked OK are allowed.

CC015212

Fork Width 1550 mm
(5 ft 1 in.)		 1900 mm
(6 ft 3 in.)
Loader Model Compatibility
583 MSL OK
583 HSL OK
633 NSL OK
633 MSL OK OK
633 HSL OK OK
653 NSL OK
653 MSL OK OK
653 HSL OK OK
663 MSL OK OK
683 NSL OK
683 MSL OK OK
683 HSL OK OK
753 MSL   OK
746 MSL   OK



OK: Fork allowed on this loader

NOTE: Grapples require the loader to be equipped with a third hydraulic function.
