Heavy-Duty Manure Fork

Heavy-duty manure forks are available in the following widths:

The chart below gives the compatibility between forks and loaders.

Only the combinations marked OK are allowed.

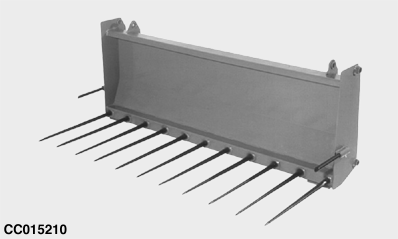

CC015210

Fork Width 1550 mm
(5 ft 1 in.)		 1900 mm
(6 ft 3 in.)
Loader Model Compatibility
533 NSL OK
533 MSL OK
583 NSL OK
583 MSL OK OK
583 HSL OK OK
633 NSL OK
633 MSL OK OK
633 HSL OK OK
653 NSL OK
653 MSL OK OK
653 HSL OK OK
663 MSL OK OK
683 NSL OK OK
683 MSL OK OK
683 HSL OK OK
753 MSL   OK
746 MSL   OK



OK: Fork allowed on this loader

Both forks are available with 680 mm (2 ft 3 in.) or 810 mm (2 ft 8 in.) tines.

OUCC006,0001358 -19-25OCT07-1/1
