OMCC58808: 533, 583, 633, 653, 663, 683, 753 Loaders and 746 Loader (005000- ), Block File: OUCC006_0001468_19

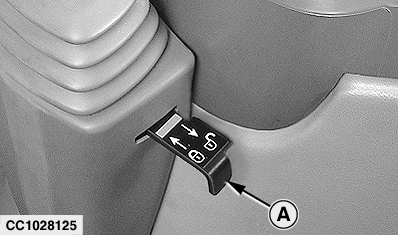

1. 3000, 3010, 5000, 5010, 5015, 6000, 6010, 6020 and 7010 Series Tractors With Loader Multi-Function Lever

Lever can be locked in neutral to prevent unintentional movement. To lock the lever, push on lock (A) while the lever is in its neutral position.

To unlock the lever, pull on lock (A).

A-Lock

OUCC006,0001468 -19-31JUL08-1/4

2. 5020, 5000R, 6030 and 7030 Series Tractors With Integrated Loader Multi-Function Lever

Lever can be locked in neutral to prevent unintentional movement. To lock the lever, push on lock (A) while the lever is in its neutral position.

To unlock the lever, pull on lock (A).

OUCC006,0001468 -19-31JUL08-2/4

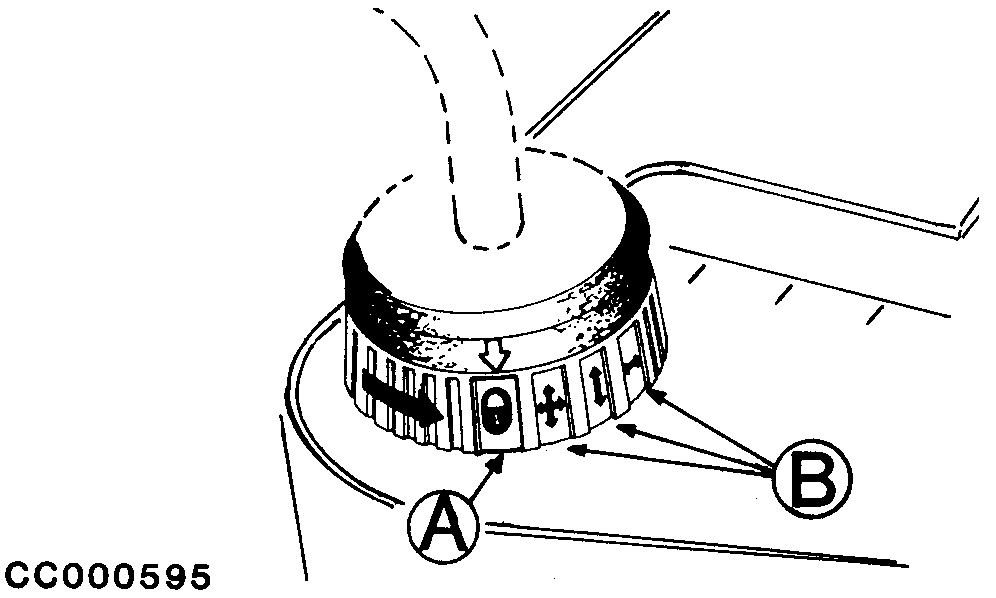

3. 6000 and 6010 Series Tractors With Integrated Multi-Function Lever

To lock the lever, rotate ring at base of lever to position (A). Positions (B) allow lever movement side to side, front to back.

A-Locked position
B-Partial locking

OUCC006,0001468 -19-31JUL08-3/4

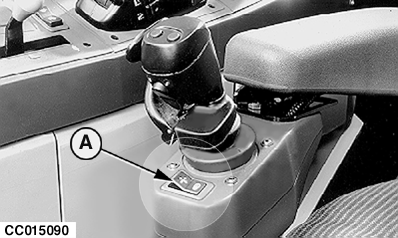

4. 6010, 6020, 6030 and 7030 Series Tractors With Armrest-Integrated Multi-Function Lever

Press on switch (A; padlock) to switch the lever off.

Press on switch (A; cross) to switch the lever on.

A-Switch

OUCC006,0001468 -19-31JUL08-4/4
