Attach and Detach CV Telescopic Hookup (459)

CC7794-UN-25SEP98

CC7796-UN-25SEP98

A - Locking Collar

CAUTION: Never attach or detach the telescopic hookup while the tractor engine is running. Never use a steel hammer to attach or detach hookup.

Shut off tractor engine and wait until baler flywheel has come to a standstill.

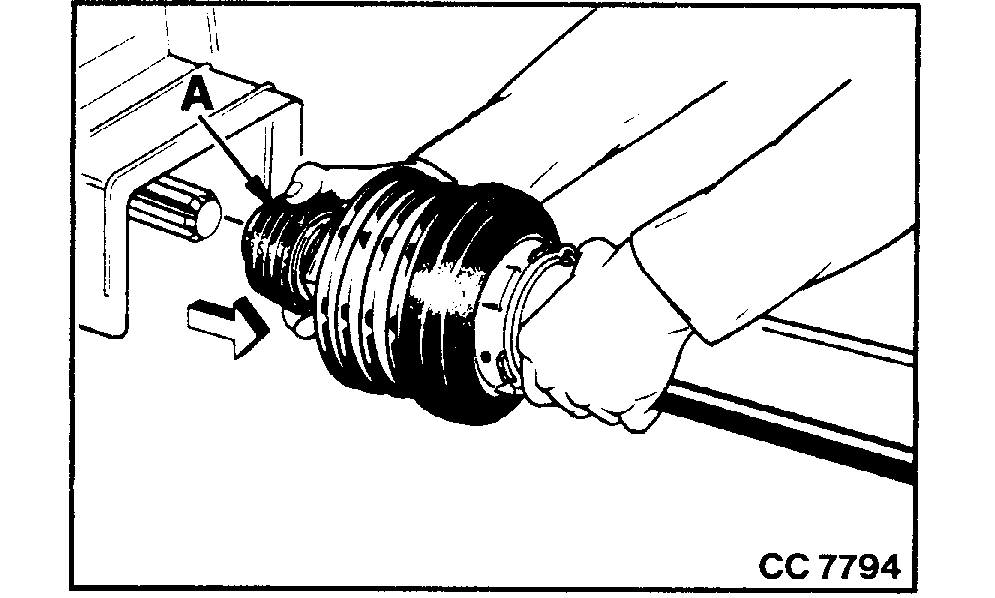

Attach:

Pull back locking collar (A) until it remains in open position.

Push hookup onto tractor PTO until lock engages automatically. In this position the locking collar must rotate freely.

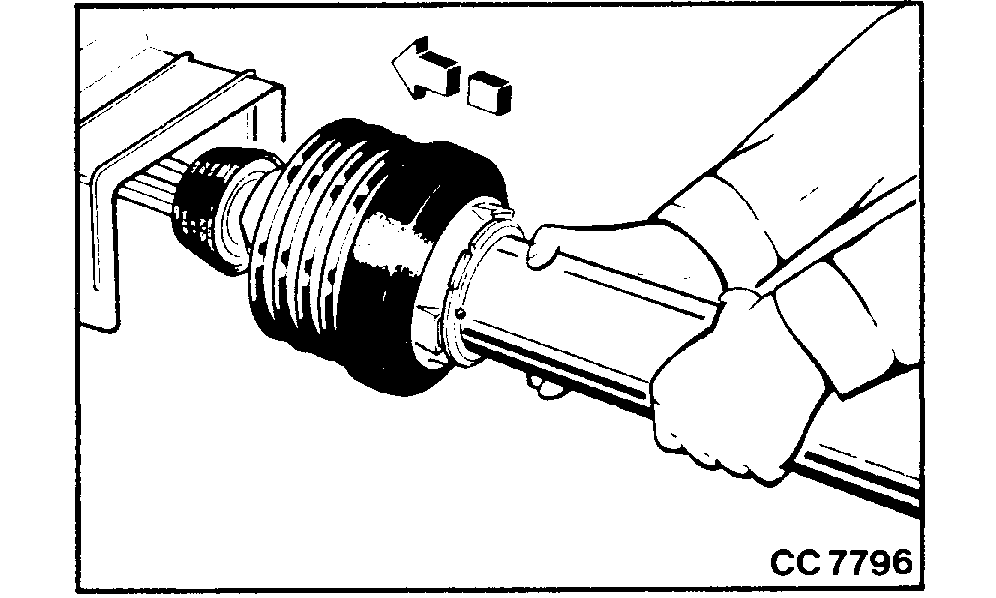

Detach:

Pull back locking collar (A) until it remains in open position. Hold hookup at guard tube and remove it from tractor PTO.
