Attach and Detach CV Telescopic Hookup (339, 349 and 359)

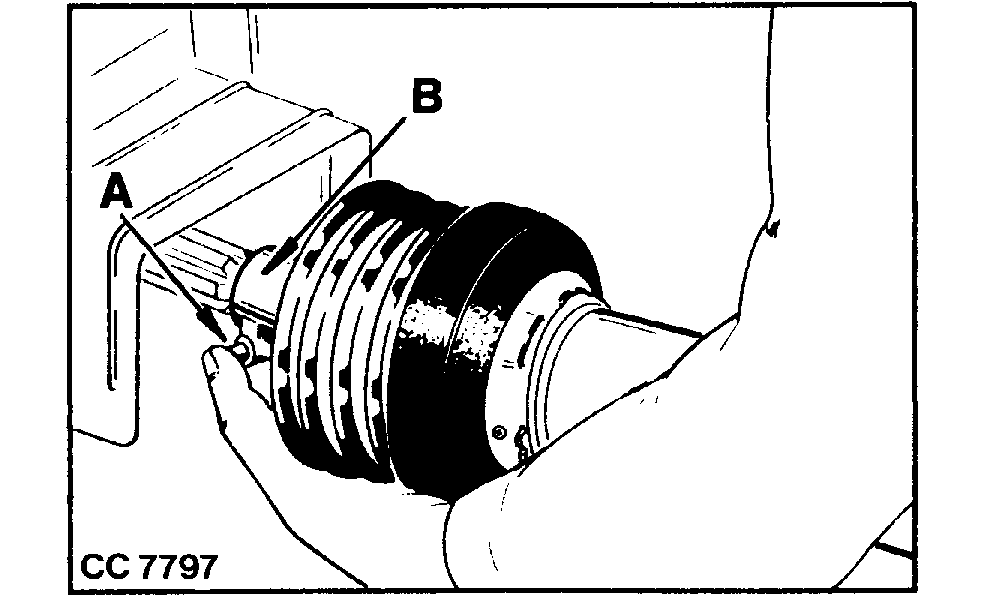

CC7797-UN-25SEP98

A - Pin

B - Telescopic Shaft

CAUTION: Never attach or detach the telescopic hookup while the tractor engine is running. Never use a steel hammer to attach or detach hookup or power shaft.

Shut off tractor engine and wait until baler flywheel has come to a standstill.

Attach:

Press pin (A) and simultaneously push telescopic shaft (B) onto tractor PTO until pin engages.

Detach:

Press pin (A) and simultaneously hold telescopic shaft (B) at guard tube. Remove shaft from tractor PTO.
