Adjust Standard Telescopic Hookup

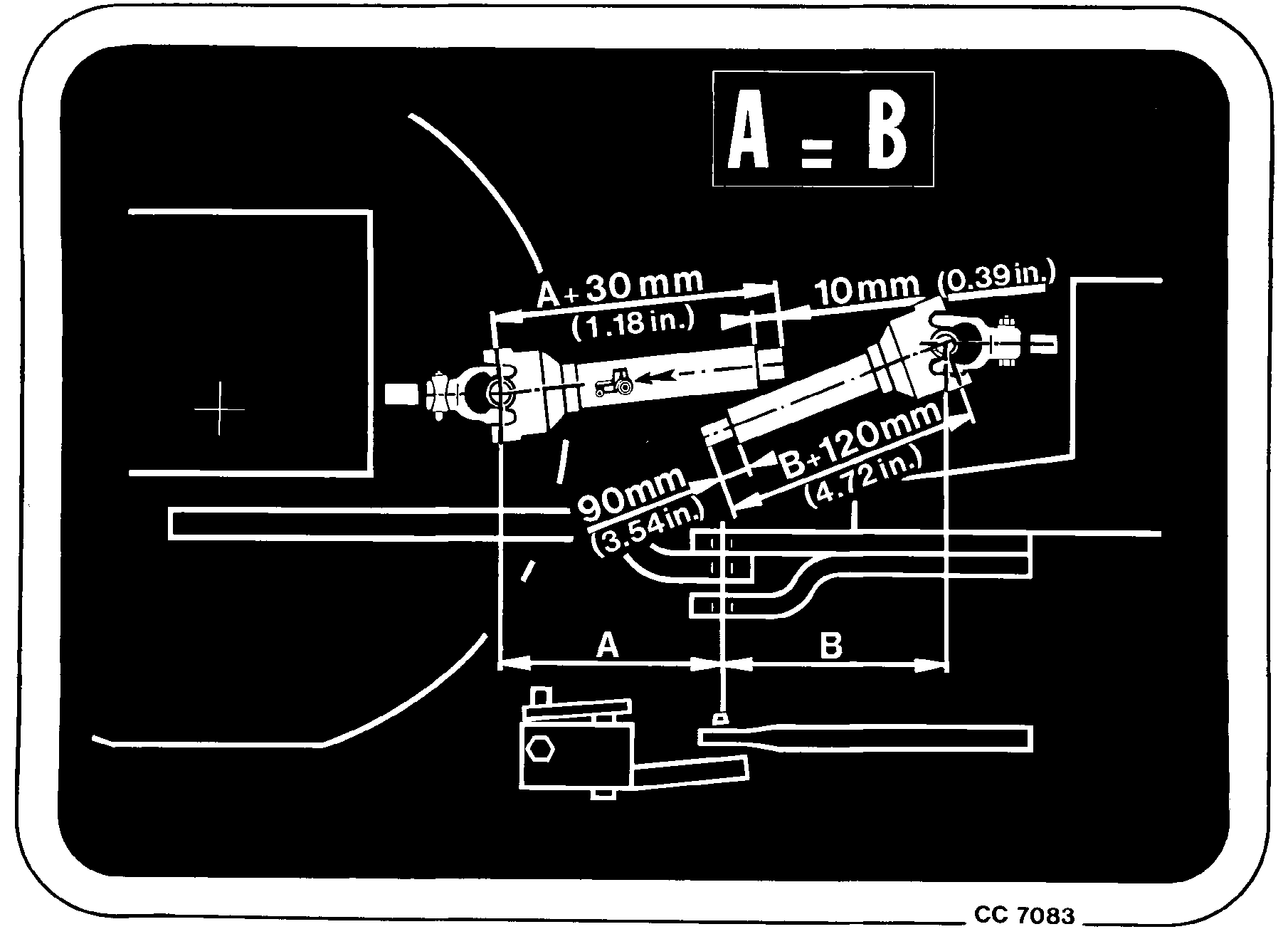

CC7083-UN-05OCT98

Adjust drawbar and hitch straps or ball joint hitch to obtain dimensions A = B.

Cut the hookup shafts and plastic shields according to the dimensions shown above.

Keep telescopic shafts free from burrs.
