Adjust Powerline Support (Baler Without CV Hookup)

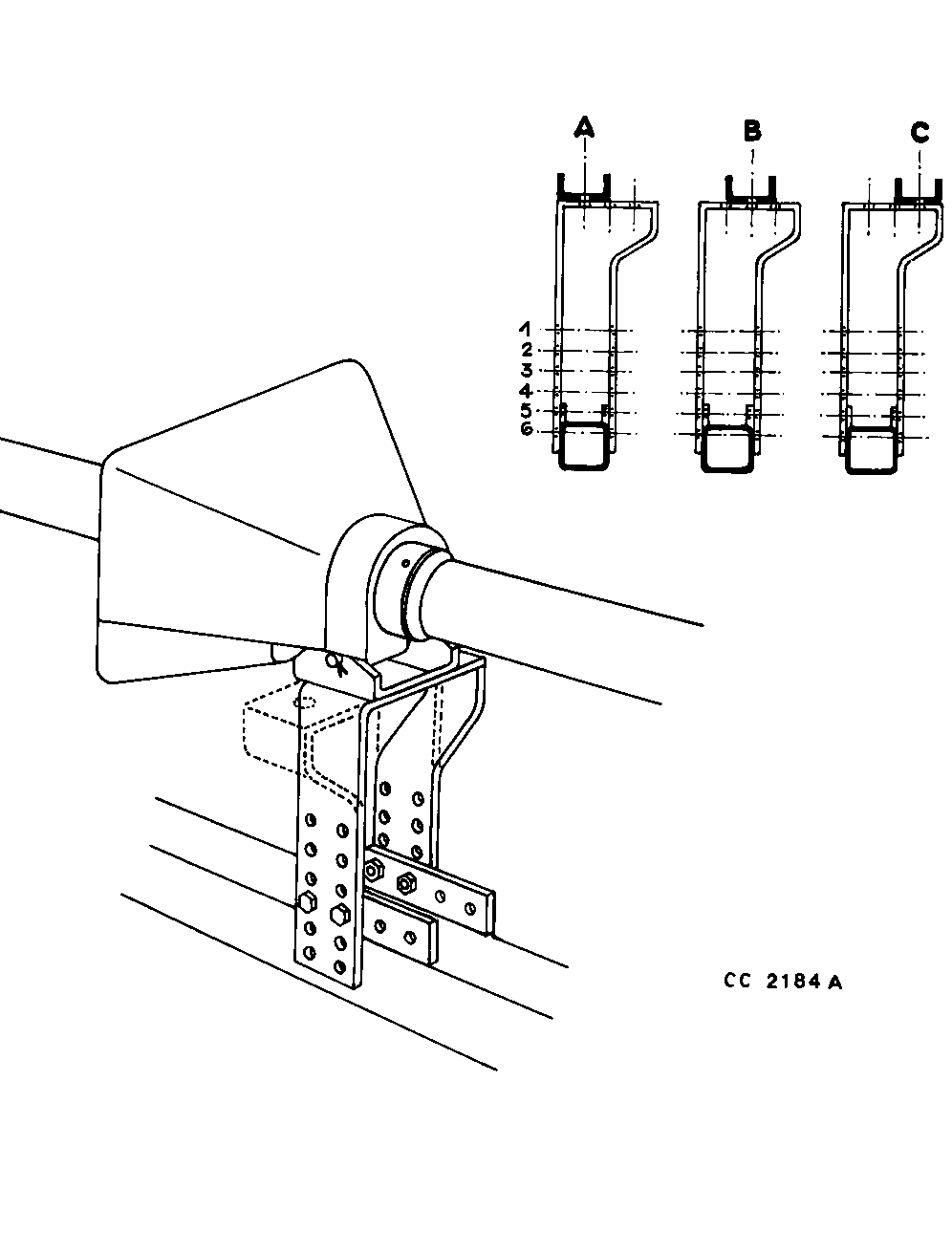

CC2184A-UN-06OCT98

The powerline support must be adjusted to obtain the maximum straightness of the hookup from tractor to slip clutch.

Lower or raise powerline support into one of the six possible positions. Then, locate the pillow-block clevis in A, B or C, as necessary, for maximum vertical and lateral straightness of the powerline.

With the baler attached to tractor, make a righ turn until telescopic shaft ends make slight contact.

Then engage PTO drive gently. If an abnormal noise is heard at the slip clutch, lower or raise support under the powerline until the noise is eliminated.

NOTE: Never use a steel hammer when connecting or removing U-joints of telescopic shaft.

Keep splines on U-joint and PTO shaft clean.

With the telescopic tubes and shields shortened, it is necessary to clean, trim, and lubricate the ends of both tubes and shields.

It is critical to comply with the instructions for hitching. This will increase the life of hookup parts and eliminate strains and jerks on the PTO and on the powerline pillow-block.
