Position Tongue (339)

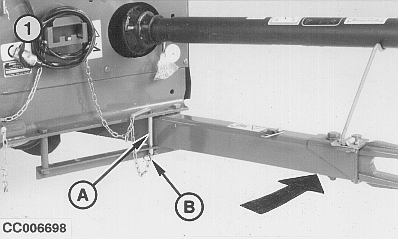

CC006698-UN-28FEB95

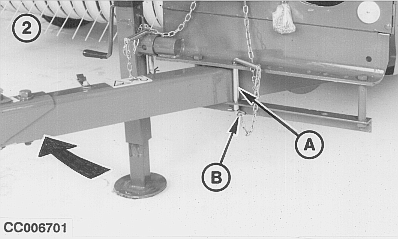

CC006701-UN-28FEB95

A - Pin

B - Quick Lock Pin

1 - Tongue in Operating Position

2 - Tongue in Transport Position

CAUTION: Danger of crushing!

To change from operating to transport position, put a chock block behind the right wheel and remove pin (A).

Shift tongue to the right and secure it with pin (A) and quick lock pin (B).

Remove chock block.

To change from transport to operating position, put a chock block in front of the right wheel and remove pin (A).

Shift tongue to the left and secure it with pin (A) and quick lock pin (B).

Remove chock block.
