Position Tongue (349, 359 and 459)

CC006699-UN-28FEB95

CC006702-UN-28FEB95

A - Pin

B - Latch

C - Quick Lock Pin

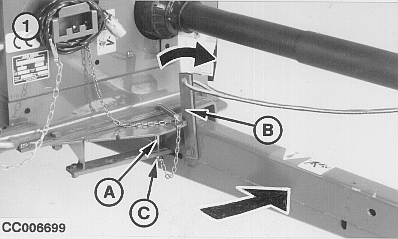

1 - Tongue in Operating Position

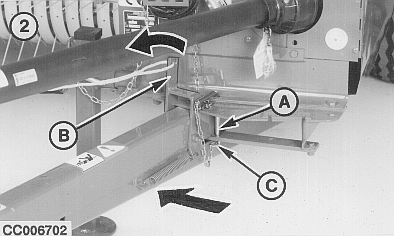

2 - Tongue in Transport Position

CAUTION: Danger of crushing!

To change from operating to transport position, put a chock block behind the right wheel and remove pin (A).

Pull latch (B) with rope.

Shift tongue to the right and release tension of rope to permit latch (B) to engage in transport position. Secure tongue with pin (A) and quick lock pin (C).

Remove chock block.

To change from transport to operating position, put a chock block in front of the right wheel and remove pin (A).

Pull latch (B) with rope.

Shift tongue to the left and release tension of rope to permit latch (B) to engage in operating position. Secure tongue with pin (A) and quick lock pin (C).

Remove chock block.

IMPORTANT: If baler is equipped with right wheel lock system, always stop the tractor before operating at a very low ground speed. Pull latch (B) with rope to engage the lock system and change the tongue position.
