Thread Needles (Twine Baler)

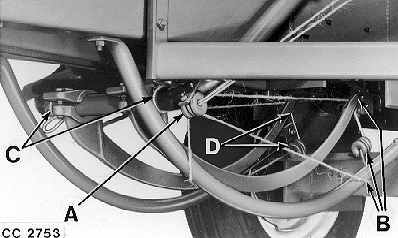

CC2753-UN-23SEP98

A - Eye

B - Right Needle

C - Needle Frame

D - Left Needle

1. Thread both ends of the twine through eye (A) on needle frame.

   IMPORTANT: Be sure twine strands are not crossed when threading.

2. With needles in ”home” position, run end of one strand of twine below needle guard, through the eye beneath the right needle and through right needle (B).

3. Run twine back to needle frame (C) and fasten as illustrated.

4. Repeat steps 2 and 3 with the other strand of twine to thread left needle (D).
