Load Wire Box

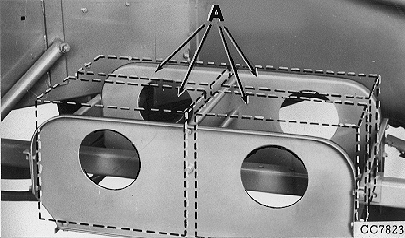

CC7823-UN-23SEP98

A - Cartons of Wire

NOTE: Splice center wire of each rear coil to outside wire of its respective front coil. Make a small tight splice so wire will pull through the wire guides and needles without snagging.

When front coils of wire have run out, place rear coils forward. Locate two new cartons of wire in the wire box and splice wires.

Thread baler with the center wire from each front coil as shown.
