Replace Knotter and Needle Drive Shear Bolt

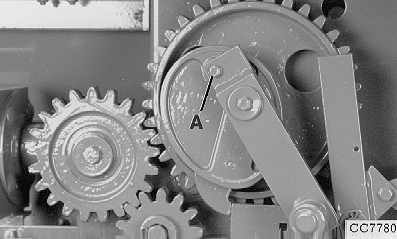

CC7780-UN-23SEP98

A - Shear Bolt

IMPORTANT: If breakage occurs, see the John Deere dealer for correct replacement. Do not use a substitute bolt.

Correct the problem and replace special shear bolt (A).

Do not replace with a standard bolt.
