Adjust Compressor Rod Height

CC7709-UN-23SEP98

CC7711-UN-23SEP98

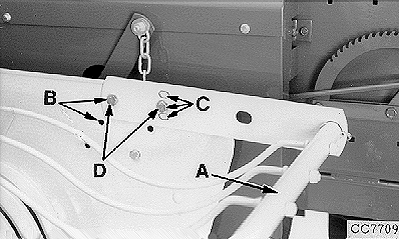

A - Compressor Rod Bar

B - Height Adjustment Holes

C - Angle Adjustment Holes

D - Carriage Bolt

E - Compressor Rods

F - Center Line of Auger

IMPORTANT: Compressor rod bar must clear highest part of windrow.

Several positions (two different heights (B) with three different angles (C) each) are possible for compressor rod bar (A).

Remove two lock nuts and carriage bolts (D) from each end. Reposition compressor rod assembly at the desired height and angle and secure with lock nuts and carriage screws.

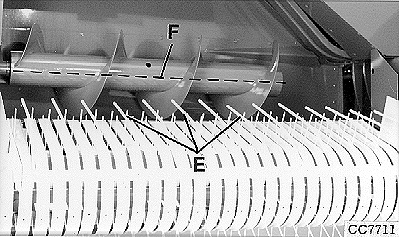

IMPORTANT: Rear of compressor rods (E) must clear the strippers enough to prevent bunching of material. They must not be any higher than center line of auger (F).
