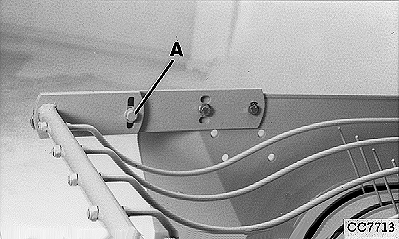

Adjust Compressor Rod Angle
CC7713-UN-23SEP98
A - Lock Nut
The angle can be increased by slightly loosening lock nut (A) and raising or lowering compressor rod bar to the desired angle. Tighten lock nut securely.
OUCC002,00022B2-19-20100319
