Remove Compressor Rods

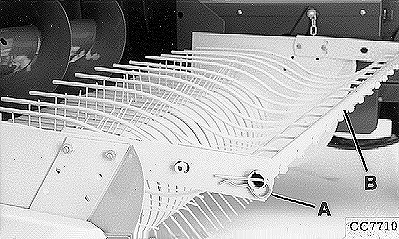

CC7710-UN-23SEP98

A - Spring Locking Pin

B - Compressor Rod Bar

CAUTION: Shut off tractor engine, remove key, and wait until all moving parts have come to a standstill before removing compressor rods. Also remove any plugged hay.

Remove spring locking pin (A) from each end of compressor rod bar (B) and remove.
