Adjust Feeder Fingers (All Models Except 459 with Double Feeder Fork)

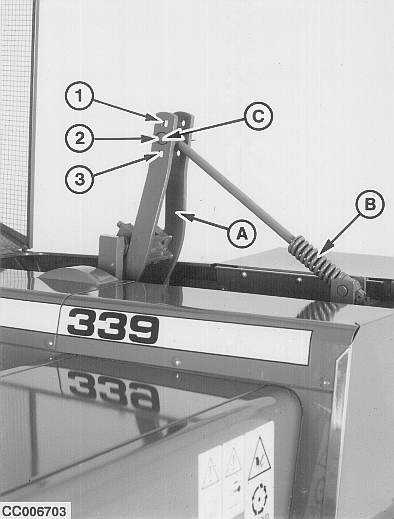

CC006703-UN-28FEB95

A - Feeder Finger

B - Spring

C - Pivot Pin

Feeder fingers (A) may be adjusted to increase or decrease their stroke, which alters the distance they move into the bale case.

NOTE: A spring (B) helps to protect the teeth from damage as a result of overloading or striking a solid object.

Three positions of feeder fingers (A) are usable.

To place more hay in right-hand side of bale case, place pivot pin (C) in position 1 of feeder fingers (A).

NOTE: Position 2 of feeder fingers (A) is the factory installed position.

If more hay is needed on the left-hand side, move pivot pin (C) to position 3 of feeder finger (A).

NOTE: If pivot pin (C) is in position 3 and material is still not coming far enough into the bale case, the baler is underfed. This happens when baling at too low ground speed or when windrows are too light.
