Adjust Bale Length

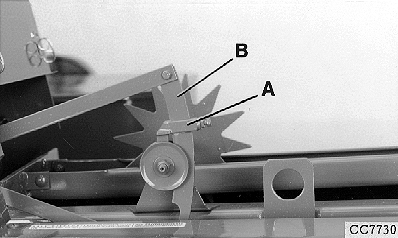

CC7730-UN-23SEP98
A - Stop
B - Measuring Wheel Arm
Adjust stop (A) on measuring wheel arm (B) up or down for desired bale length.Raise the stop to increase bale length, lower stop to decrease length.
The bale length may be varied between 1.3 m (50 in.) and 0.3 m (12 in.).
|
