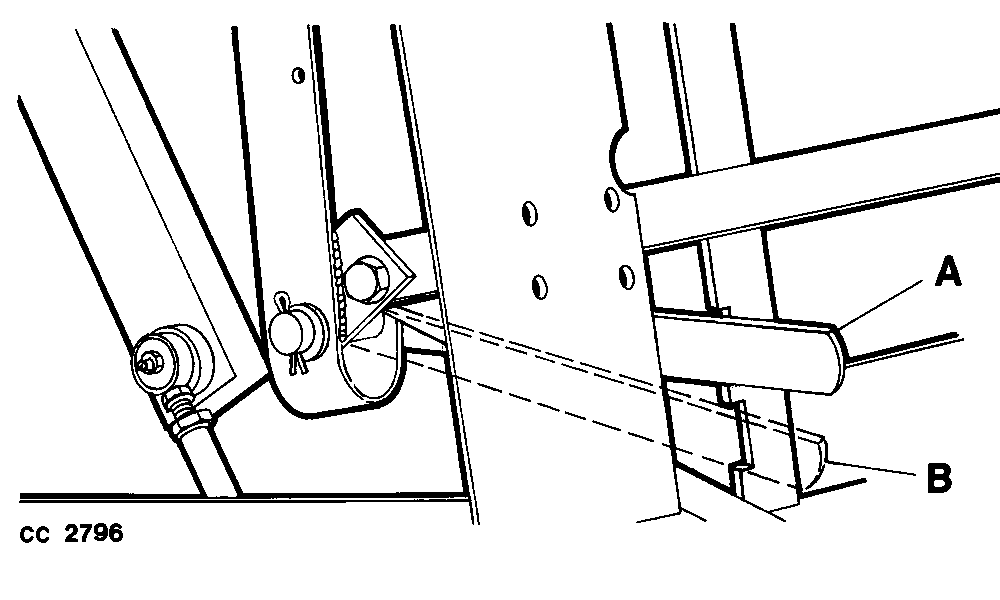

Operate the Safety Latch

CC2796-UN-06OCT98

A - Unlatched Position

B - Latched Position

CAUTION: Before servicing machine, shut off tractor engine, remove key and engage safety latch.

Safety regulations in certain countries require a safety latch on the baler.

If the lever is in position (B), the safety latch prevents any tripping of needles and knotting mechanism.

With lever in position (A), safety latch is not engaged and the knotting mechanism will normally be tripped at the end of the measuring wheel stroke.
