Adjust Height of Pickup Teeth (339)

CC7884-UN-23SEP98

CC7883-UN-23SEP98

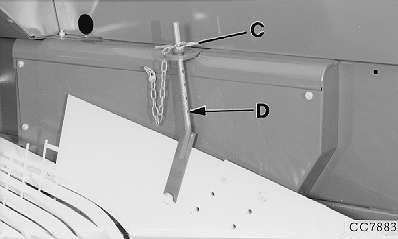

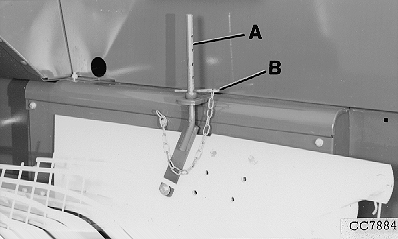

A - Adjusting Rod

B - Quick Lock Pin

C - Lowest Position

D - Transport Position

CAUTION: Before commencing adjustment, shut off the tractor engine, remove key, and wait until flywheel has come to a standstill.

Set pickup teeth as high as possible, but low enough to pick up all the crop.

CAUTION: Quick lock pin (B) must always be locked firmly.

Adjust pickup teeth height using adjusting rod (A) and quick lock pin (B).
