Adjust Pickup Teeth Height (349, 359 and 459)

CC8701-UN-23SEP98

CC8700-UN-23SEP98

A - Quick Lock Pin

B - Lever

C - Transport Position

D - Lowest Position

CAUTION: Before commencing adjustment, shut off the tractor engine, remove key, and wait until flywheel has come to a standstill.

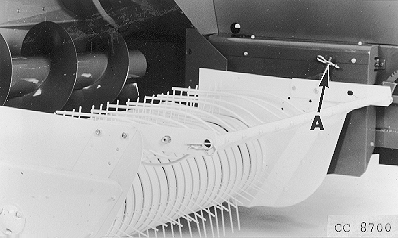

Set pickup teeth as high as possible, but low enough to pick up all the crop using adjusting rod and quick lock pin (A).

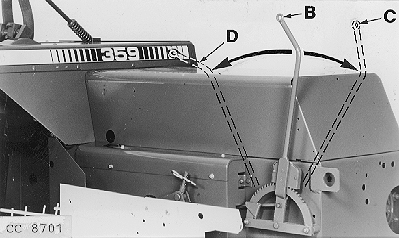

Pull lever (B) all the way forward to raise the pickup completely for transport.

Push lever (B) to the rear stop to lower the pickup.
