Adjust Pickup Teeth Height (349, 359 and 459 with Hydraulic Option)

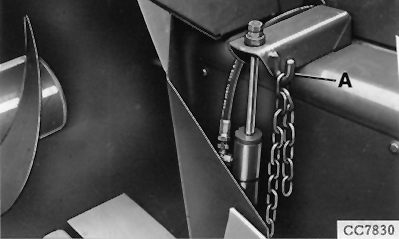

CC7830-UN-05OCT98

A - Hook

A single-acting hydraulic cylinder allows the pickup to be raised or lowered.

Attach the chain to hook (A) so that pickup teeth are as high as possible, but low enough to pick up all the crop.
