Reset Bale Counter

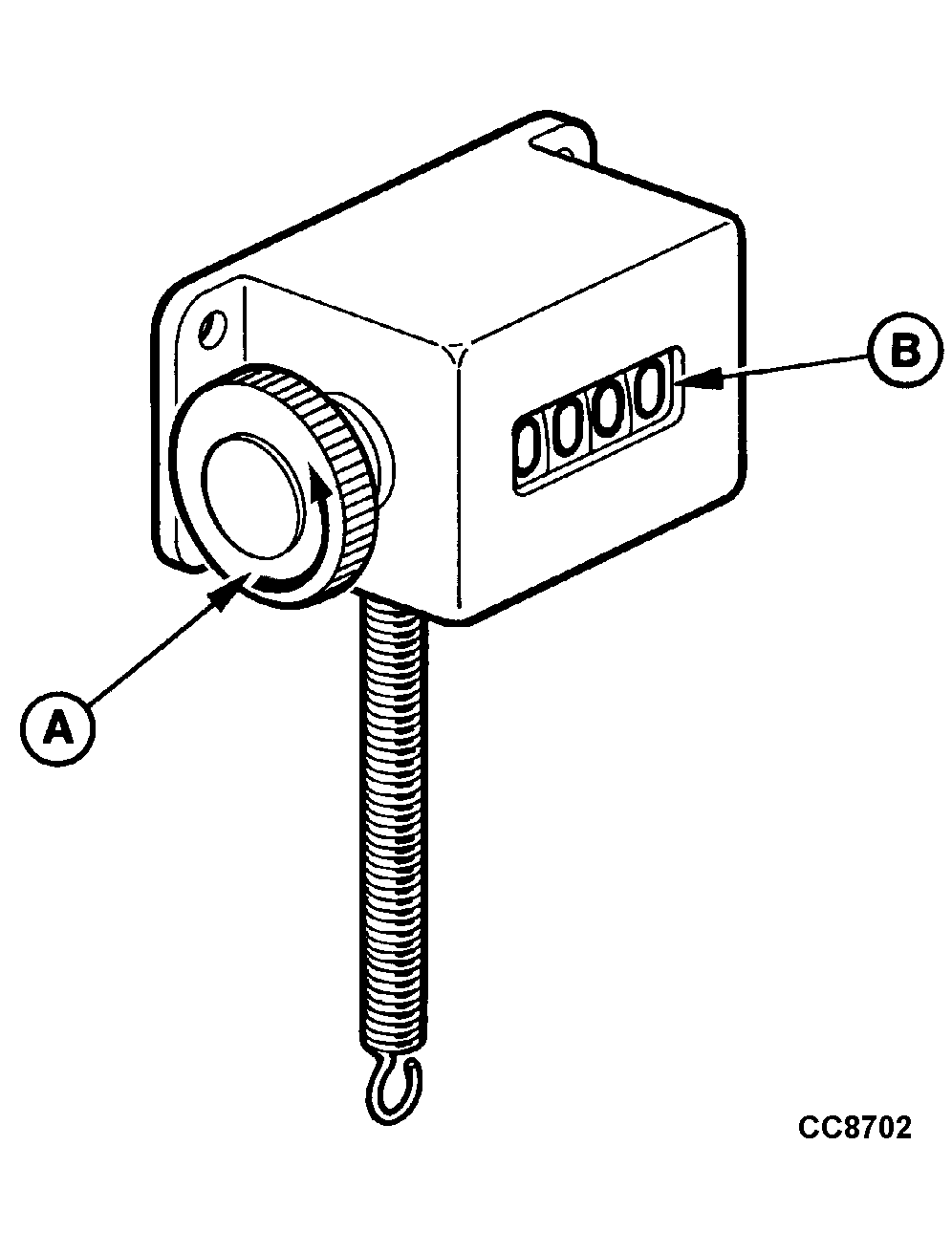

CC8702-UN-05OCT98

A - Knob

B - Window

The bale counter must always be correctly reset.

Turn knob (A) counterclockwise (arrow) until window (B) displays 0000. A click confirms that all components are properly engaged.

NOTE: Any partial rotation of the knob (either clockwise or counterclockwise) will result in a malfunction of the counter. In this case, reset the counter as explained above.
