Side Straw Resistors (349, 359 and 459)

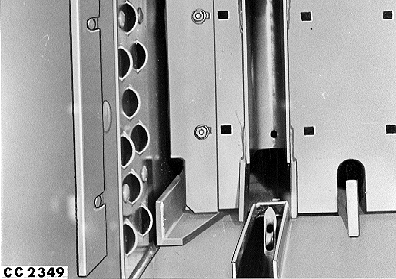

CC2349-UN-23SEP98

Side straw resistors, which can be mounted on each side of the bale case, provide increased bale density. This is especially recommended when baling light, dry material.

IMPORTANT: Before installing the resistors, ensure that the paint inside the bale case has worn off sufficiently.

NOTE: Up to two sets of straw resistors may be installed, depending on the desired bale density. If one set of resistors is used, it must be screwed in the front holes. As the baling conditions become normal, remove the resistors set by set, starting at the rear of the bale case.
