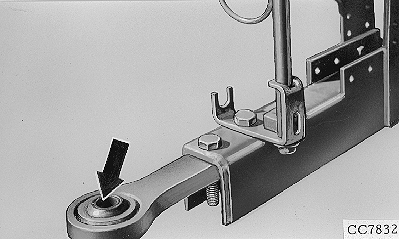

Ball Joint Hitch

CC7832-UN-23SEP98

The ball joint hitch enables the use of two different hitch pin sizes. To change from 26.5 mm (1.04 in.) to 33 mm (1.30 in.) or vice versa, remove or install bushing.

NOTE: The ball joint hitch must be attached to the swinging drawbar of the tractor.
