Loading Frame (349, 359 and 459)

CC2959-UN-25SEP98

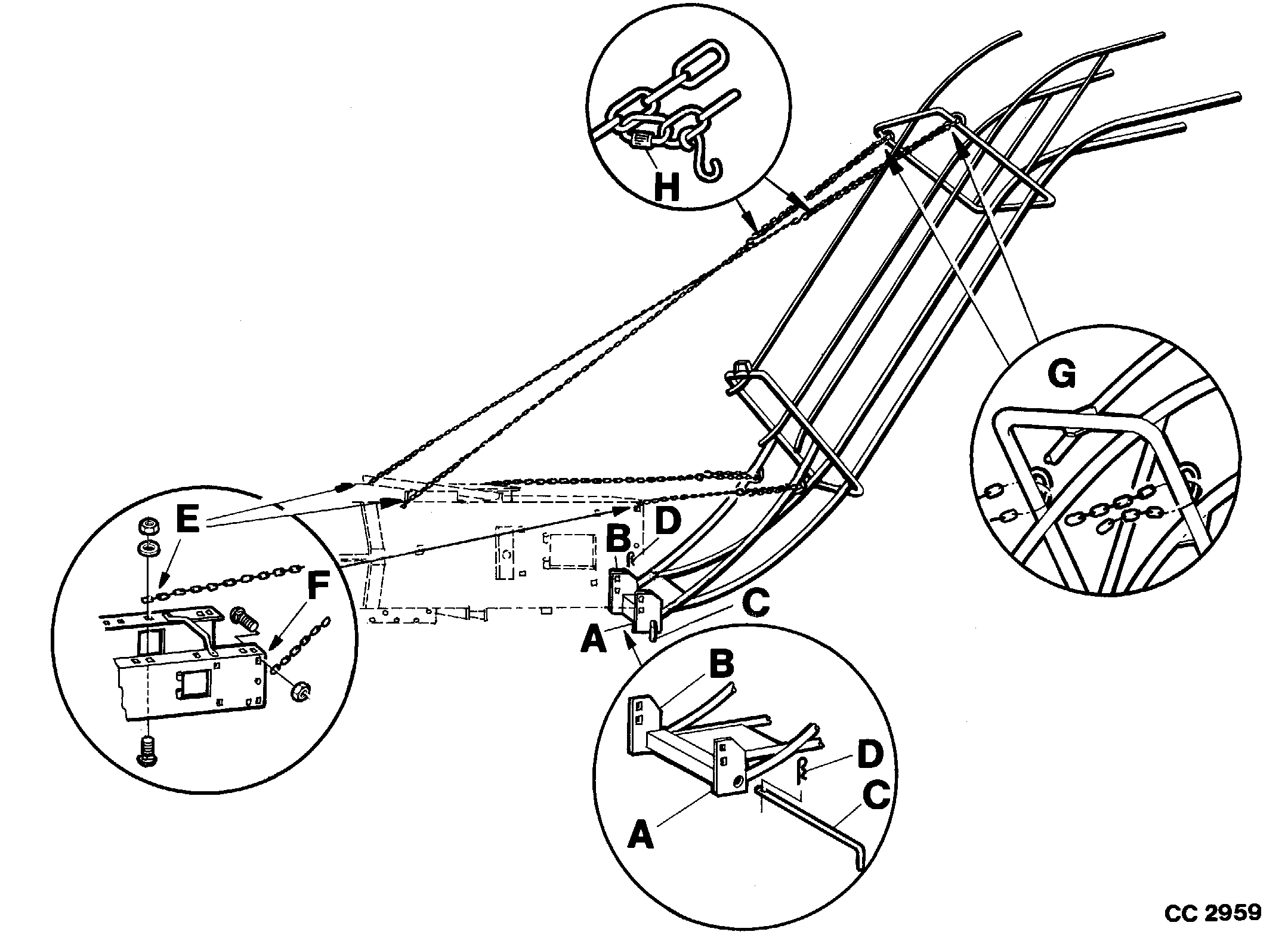

Loading Frame

A - Mounting Plate

B - Mounting Plate

C - Pin

D - Locking Pin

E - Upper Chain

F - Lower Chain

G - Loops

H - Chain Link

The loading frame must be attached as follows:

Attach mounting plates (A and B) in vertical position. Attach loading frame with pin (C) and locking pin (D).

Attach upper chains (E) and lower chains (F) to bale case, as shown.

Bring loading frame into operating position and place chains around tubes and through loops (G) as shown.

NOTE: The upper chains must be crossed and sag slightly when the loading frame is empty.

Attach chains as shown and tighten chain link (H) securely.

NOTE: The loading frame requires the use of the trailer hitch.
