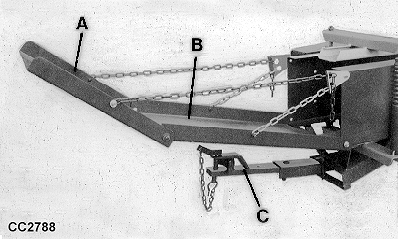

Trailer Hitch, Bale Chute and Bale Chute Extension

CC2788-UN-23SEP98

A - Bale Chute Extension

B - Bale Chute

C - Trailer Hitch

These attachments allow the bales to be loaded directly from the baler to a trailer, without picking up bales.

Bale chute extension (A) is attached by chains in the same way as regular bale chute (B).

The support of adjustable trailer hitch (C) is screwed directly to the bale case. The telescopic trailer hitch is adjustable for trailers having tongues of variable length.
