As Required: Hydraulic Bale Tensioner

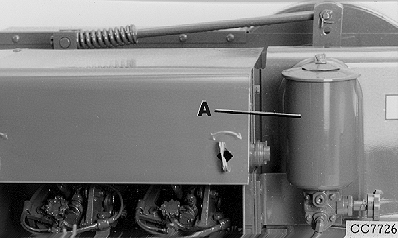

CC7726-UN-23SEP98
A - Reservoir
Oil must be level with the mark in reservoir (A).If necessary, add oil. Use a type specified under Transmission and Hydraulic Oil in this Section.
|
OUCC002,00022D3-19-20100331 |
