As Required: Flywheel Bushing

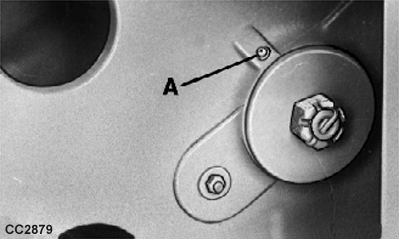

CC2879-UN-23SEP98
A - Fitting
Whenever flywheel shear bolt is replaced (or every 10 hours), lubricate fitting (A) with John Deere GREASE-GARD.If the bushing is replaced, drill the lubrication hole in the new bushing once it is installed. Liberally lubricate the hub before and after reinstalling the flywheel.
|
OUCC002,00022D6-19-20100331 |
