Every 5 Hours: Multi-Luber System (349, 359 and 459)

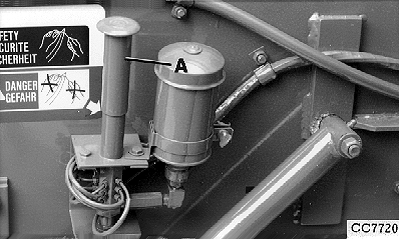

CC7720-UN-23SEP98

A - Pump Handle

Pump the multi-luber twice every 5 hours of operation.

IMPORTANT: Use John Deere Multi-Lube Lubricant.

Using lubricant of the wrong type can cause malfunction of the system.

Push pump handle (A) all the way down to discharge lubricant through all ports. The measuring chamber is filled as the plunger and handle return to their normal position.

Periodically check reservoir lubricant level with dipstick.
