Every 10 Hours

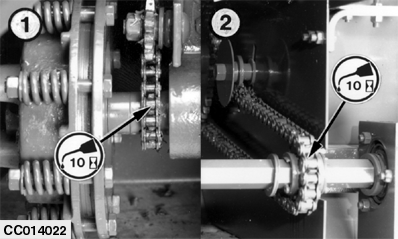

CC014022-UN-24OCT98

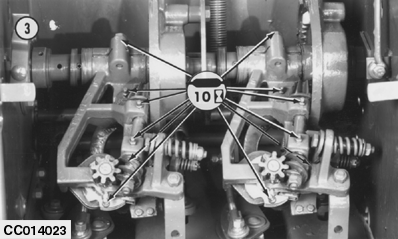

CC014023-UN-24OCT98

1 - Main Drive Chain

2 - Feeder Finger Drive Chain

3 - Knotters (Baler without multi-luber)

Lubricate with John Deere GREASE-GARD.

CC014024-UN-24OCT98

1 - Flywheel Bushing

2 - Clutch Ring

NOTE: Whenever flywheel shear bolt is replaced, lubricate at fitting.
