Every 50 Hours

CC014012
CC014012-UN-24OCT98

CC014028
CC014028-UN-24OCT98

CC014029
CC014029-UN-24OCT98

CC014030
CC014030-UN-24OCT98

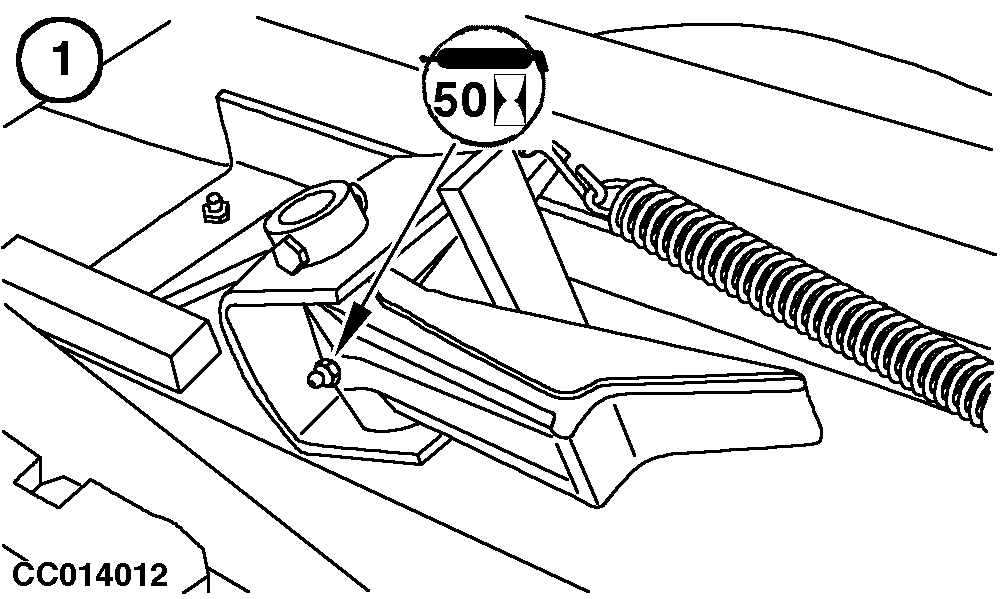

1 - Plungerhead Safety Stop

2 - Needle Frame Pin (Lubricate Both Sides)

3 - Pickup Gauge Wheel

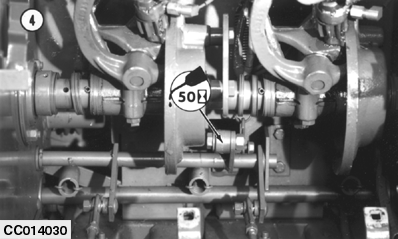

4 - Tucker Finger Drive Roller

Lubricate with John Deere GREASE-GARD.

CC014031
CC014031-UN-24OCT98

CC014032
CC014032-UN-24OCT98

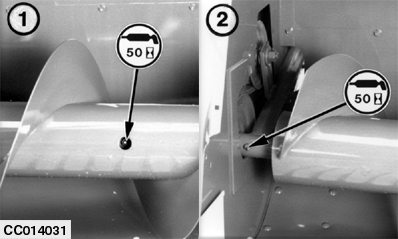

1 - Auger Center Grease Fitting

2 - Auger Right Grease Fitting

3 - Auger Drive Grease Fitting

Lubricate with John Deere GREASE-GARD.

OUCC002,00022DF-19-20100319
